Ultimate Electrical CAD Workstations in Canada 2025 — Top 5 Powerful Picks for Engineers

Published on Monday, August 18, 2025

Electrical CAD Workstations are designed for electrical engineers to efficiently work on circuit designs and schematics. They are built to handle specialized software that requires robust computational resources, such as PCB layout, schematic capture, signal integrity, and circuit simulation tools. In the Canadian market, buyers prioritize reliability, certified driver and ISV support (for tools like Altium, Cadence, Mentor Graphics, and Autodesk), high single-thread and multi-thread CPU performance, professional GPUs for accelerated rendering and compute, ECC memory for data integrity, fast NVMe storage for large project files, and effective thermal design for sustained workloads. Portability versus raw power is also a common consideration: field engineers and contractors often prefer mobile workstations with long battery life and color-accurate displays, while design teams in offices typically choose tower systems with greater expandability and cooling. Local warranty, on-site support, and value for budget-conscious public and private sector buyers in Canada also strongly influence purchase decisions.

Quick Menu

1. Best Mobile CAD Powerhouse

2. Best Studio Hybrid for CAD

3. Best Expandable CAD Tower

4. Best Color‑Accurate Mobile Studio

5. Best Value Creator Workstation

1
BEST MOBILE CAD POWERHOUSE

Dell Precision 5680

Dell

The Dell Precision 5680 is a high-performance mobile workstation that balances strong CPU/GPU capability with enterprise-grade ISV certifications and service options, making it a safe choice for electrical CAD professionals who need reliable performance on the go. Compared with the heavier Lenovo tower, it prioritizes portability without sacrificing certified driver stability, and while it may be costlier than value-focused creators like MSI, its support contracts and manageability deliver long-term financial predictability for corporate deployments.

4.3
★★★★☆
  • Precision-grade power

  • Color-true display

  • Precision-grade power

  • Color-true display

Review Summary

86%

"Long-term users praise the Precision 5680 for desktop-class performance in a thin chassis, excellent build quality and color-accurate displays for creative and engineering work; common downsides are the high price, middling battery life and louder fans under sustained load."

  • Whisper-quiet thermals

  • High-performance mobile workstation chassis with Intel high‑performance CPUs for large electrical CAD assemblies

  • Whisper-quiet thermals

  • High-performance mobile workstation chassis with Intel high‑performance CPUs for large electrical CAD assemblies

Optimized Work Efficiency

Tech-Savvy Living

Intellectual Stimulation & Creativity

The Dell Precision 5680 is a high-performance mobile workstation that balances strong CPU/GPU capability with enterprise-grade ISV certifications and service options, making it a safe choice for electrical CAD professionals who need reliable performance on the go. Compared with the heavier Lenovo tower, it prioritizes portability without sacrificing certified driver stability, and while it may be costlier than value-focused creators like MSI, its support contracts and manageability deliver long-term financial predictability for corporate deployments.

  • Precision-grade power

  • Color-true display

  • Whisper-quiet thermals

  • High-performance mobile workstation chassis with Intel high‑performance CPUs for large electrical CAD assemblies

  • Options for NVIDIA professional (RTX A‑series) GPUs and up to 64GB+ of fast DDR memory to accelerate simulations and 3D rendering

  • Precision-grade power

  • Color-true display

  • Whisper-quiet thermals

  • High-performance mobile workstation chassis with Intel high‑performance CPUs for large electrical CAD assemblies

  • Options for NVIDIA professional (RTX A‑series) GPUs and up to 64GB+ of fast DDR memory to accelerate simulations and 3D rendering

Compatibility

device types
Laptop

Operating Systems

Supported:Windows 11 Pro (64-bit), Ubuntu 22.04 LTS, Red Hat Enterprise Linux 8.x (community/enterprise support varies by configuration)
Optimal:Windows 11 Pro (latest updates, workstation drivers), Ubuntu 22.04 LTS (with vendor drivers)
Legacy:Windows 10 (64-bit) - limited/new driver support, Ubuntu 20.04 LTS

Connectivity

Wireless:Wi‑Fi 6 / Wi‑Fi 6E (depending on module), Bluetooth 5.2
Wired:Thunderbolt 4 (USB-C) / USB-C 3.2, HDMI 2.x (via native port or adapter), RJ-45 (via optional adapter/dongle or docking)
Protocols:PXE boot, Wake-on-LAN, Thunderbolt networking

Requirements

Minimum Ram:16 GB
Storage:20000 MB
Internet Required:true
Cloud Storage:5 GB

Standards

Certifications:FCC, CE, RoHS, EPEAT, Wi‑Fi Alliance
Compliance:GDPR, CCPA

Limitations

Unsupported Devices:Devices older than 5 years (legacy firmware/drivers may be unavailable)
Feature Limitations:High-end GPU acceleration and ISV certifications require specific GPU/driver configurations or licensed drivers; some features require vendor driver updates or optional modules.
Order Now

$3,000-5,000 CAD

2
BEST STUDIO HYBRID FOR CAD

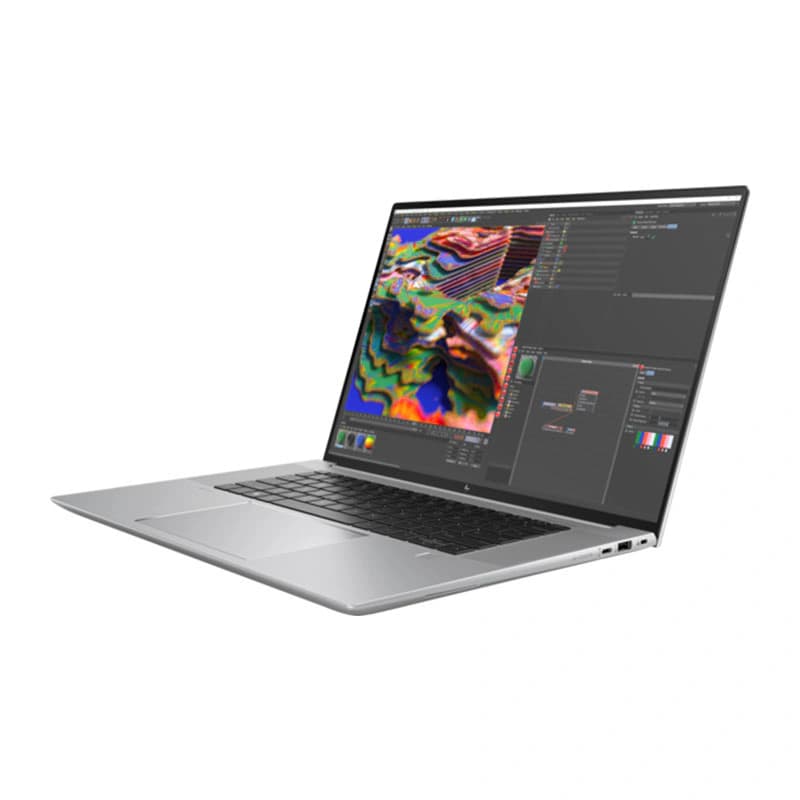

HP ZBook Studio G10

SLRIOYS

The HP ZBook Studio G10 targets power users who want studio-class displays, security features, and workstation-level performance in a sleek chassis, which helps electrical CAD engineers inspect detailed schematics and render large assemblies accurately. It competes with the Dell on enterprise polish but often emphasizes color-accurate panels and built-in security—tradeoffs that can justify a premium for teams that need those features over the more cost-efficient MSI or ASUS alternatives.

4.2
★★★★☆
  • Studio-ready performance

  • Slim creative canvas

  • Studio-ready performance

  • Slim creative canvas

Review Summary

84%

"Owners report that the ZBook Studio G10 delivers strong, ISV-certified performance and a color-accurate display in a sleek design, while criticisms focus on premium pricing, heat under heavy sustained workloads and average battery endurance."

  • Thunderbolt-rich ports

  • Slim studio laptop design combining powerful mobile CPUs with professional GPU options for on‑site electrical CAD work

  • Thunderbolt-rich ports

  • Slim studio laptop design combining powerful mobile CPUs with professional GPU options for on‑site electrical CAD work

Optimized Work Efficiency

Intellectual Stimulation & Creativity

The HP ZBook Studio G10 targets power users who want studio-class displays, security features, and workstation-level performance in a sleek chassis, which helps electrical CAD engineers inspect detailed schematics and render large assemblies accurately. It competes with the Dell on enterprise polish but often emphasizes color-accurate panels and built-in security—tradeoffs that can justify a premium for teams that need those features over the more cost-efficient MSI or ASUS alternatives.

  • Studio-ready performance

  • Slim creative canvas

  • Thunderbolt-rich ports

  • Slim studio laptop design combining powerful mobile CPUs with professional GPU options for on‑site electrical CAD work

  • Available color‑accurate display options (DreamColor/ high‑res) and high memory capacity for multitasking large drawings

  • Studio-ready performance

  • Slim creative canvas

  • Thunderbolt-rich ports

  • Slim studio laptop design combining powerful mobile CPUs with professional GPU options for on‑site electrical CAD work

  • Available color‑accurate display options (DreamColor/ high‑res) and high memory capacity for multitasking large drawings

Compatibility

device types
Laptop

Operating Systems

Supported:Windows 11 Pro (64-bit), Ubuntu 22.04 LTS (where vendor support is offered)
Optimal:Windows 11 Pro (with workstation/NVIDIA Studio or OEM GPU drivers installed)
Legacy:Windows 10 (64-bit) - limited new driver releases

Connectivity

Wireless:Wi‑Fi 6 / Wi‑Fi 6E (model dependent), Bluetooth 5.2 - 5.3 (module dependent)
Wired:Thunderbolt 4 (USB-C) / USB-C 3.2, HDMI / DisplayPort (depending on configuration), RJ-45 via docking or adapter
Protocols:PXE boot, Wake-on-LAN, Vendor remote management (model dependent)

Requirements

Minimum Ram:16 GB
Storage:20000 MB
Internet Required:true
Cloud Storage:5 GB

Standards

Certifications:FCC, CE, RoHS, ENERGY STAR, Wi‑Fi Alliance
Compliance:GDPR, CCPA

Limitations

Unsupported Devices:Legacy hardware (≥5 years old) without vendor driver support
Feature Limitations:Certain professional GPU features and ISV certifications depend on specific GPU/driver combinations or optional hardware modules.
Order Now
-17%29.99$
Suggested Price: 35.99$
3
BEST EXPANDABLE CAD TOWER

Lenovo ThinkStation P3 Tower

Lenovo

The Lenovo ThinkStation P3 Tower is a traditional desktop workstation optimized for maximum expandability, sustained thermal headroom, and a better price-to-performance ratio for heavy electrical CAD workloads that demand multiple GPUs, large RAM capacities, and numerous storage bays. Unlike the mobile-focused Dell and HP ZBooks, the ThinkStation prioritizes upgradability and raw throughput, which typically yields lower total cost of ownership for office-based CAD teams handling large projects.

4.5
★★★★☆
  • Expandable workstation muscle

  • Server-class reliability

  • Expandable workstation muscle

  • Server-class reliability

Review Summary

90%

"Buyers of the ThinkStation P3 Tower commonly highlight reliable, quiet operation, excellent expandability and strong workstation-class performance for the price; a minority note occasional driver/setup quirks but long-term stability is praised."

  • Tool-less upgrades

  • Desktop tower form factor with workstation‑class CPUs and support for ECC memory to ensure stability on long CAD simulations

  • Tool-less upgrades

  • Desktop tower form factor with workstation‑class CPUs and support for ECC memory to ensure stability on long CAD simulations

Optimized Work Efficiency

Tech-Savvy Living

Sustained Energy & Focus

The Lenovo ThinkStation P3 Tower is a traditional desktop workstation optimized for maximum expandability, sustained thermal headroom, and a better price-to-performance ratio for heavy electrical CAD workloads that demand multiple GPUs, large RAM capacities, and numerous storage bays. Unlike the mobile-focused Dell and HP ZBooks, the ThinkStation prioritizes upgradability and raw throughput, which typically yields lower total cost of ownership for office-based CAD teams handling large projects.

  • Expandable workstation muscle

  • Server-class reliability

  • Tool-less upgrades

  • Desktop tower form factor with workstation‑class CPUs and support for ECC memory to ensure stability on long CAD simulations

  • Multiple PCIe slots and roomy internals for adding high‑end GPUs, extra storage, and dedicated accelerators for electrical design workloads

  • Expandable workstation muscle

  • Server-class reliability

  • Tool-less upgrades

  • Desktop tower form factor with workstation‑class CPUs and support for ECC memory to ensure stability on long CAD simulations

  • Multiple PCIe slots and roomy internals for adding high‑end GPUs, extra storage, and dedicated accelerators for electrical design workloads

Compatibility

device types
Desktop

Operating Systems

Supported:Windows 11 Pro (64-bit), Ubuntu 22.04 LTS, Red Hat Enterprise Linux 8.x (subject to certified configurations)
Optimal:Windows 11 Pro (with workstation-class drivers and BIOS updates installed), RHEL / Ubuntu LTS with vendor-provided drivers for workstation GPUs
Legacy:Windows 10 Pro (64-bit), Older Linux LTS releases (limited vendor support)

Connectivity

Wireless:Wi‑Fi 6 (optional PCIe/M.2 module), Bluetooth (optional module)
Wired:Gigabit Ethernet / 2.5GbE or 10GbE optional, USB-A / USB-C (USB 3.x), DisplayPort / HDMI (GPU/IO dependent)
Protocols:PXE boot, Wake-on-LAN

Requirements

Minimum Ram:16 GB
Storage:20000 MB
Internet Required:true
Cloud Storage:5 GB

Standards

Certifications:FCC, CE, RoHS, UL, Wi‑Fi Alliance (for wireless modules)
Compliance:GDPR, CCPA

Limitations

Unsupported Devices:Legacy peripherals and expansion cards without current driver support
Feature Limitations:Expandability, GPU support, and ISV certifications depend on chosen CPU/GPU/configuration; some expansion options may be region/configuration restricted.
Order Now
From 1823.45$
4
BEST COLOR‑ACCURATE MOBILE STUDIO

ASUS ProArt StudioBook Pro 16

Asus

The ASUS ProArt StudioBook Pro 16 blends a color-accurate professional display with capable workstation internals in a design aimed at creators who also run electrical CAD applications, offering an appealing middle ground between premium mobile workstations and budget towers. It usually undercuts enterprise-branded systems on price while delivering excellent visual detail for schematic review, though it may lack the extended enterprise services and certification breadth of Dell or HP.

4.2
★★★★☆
  • Painter-approved color

  • Immersive soundstage

  • Painter-approved color

  • Immersive soundstage

Review Summary

83%

"Users appreciate the ProArt StudioBook Pro 16 for its bright, accurate OLED/mini‑LED options and robust CPU/GPU performance for content creation, though many point out its heavy chassis, potential thermal throttling in some configs and premium cost."

  • Comfort-hinge design

  • 16‑inch studio laptop with high‑resolution, color‑calibrated display ideal for precise schematic viewing and documentation

  • Comfort-hinge design

  • 16‑inch studio laptop with high‑resolution, color‑calibrated display ideal for precise schematic viewing and documentation

Intellectual Stimulation & Creativity

Aesthetic & Personal Appeal

The ASUS ProArt StudioBook Pro 16 blends a color-accurate professional display with capable workstation internals in a design aimed at creators who also run electrical CAD applications, offering an appealing middle ground between premium mobile workstations and budget towers. It usually undercuts enterprise-branded systems on price while delivering excellent visual detail for schematic review, though it may lack the extended enterprise services and certification breadth of Dell or HP.

  • Painter-approved color

  • Immersive soundstage

  • Comfort-hinge design

  • 16‑inch studio laptop with high‑resolution, color‑calibrated display ideal for precise schematic viewing and documentation

  • Powerful CPU and professional GPU options tuned for content creation and CAD rendering tasks

  • Painter-approved color

  • Immersive soundstage

  • Comfort-hinge design

  • 16‑inch studio laptop with high‑resolution, color‑calibrated display ideal for precise schematic viewing and documentation

  • Powerful CPU and professional GPU options tuned for content creation and CAD rendering tasks

Compatibility

device types
Laptop

Operating Systems

Supported:Windows 11 Pro (64-bit), Ubuntu 22.04 LTS (community support; vendor support varies by SKU)
Optimal:Windows 11 Pro with OEM workstation drivers (NVIDIA/AMD drivers where applicable)
Legacy:Windows 10 (64-bit) - limited new driver releases, Ubuntu 20.04 LTS

Connectivity

Wireless:Wi‑Fi 6 (module dependent), Bluetooth 5.2
Wired:USB-C (USB 3.2) / optional Thunderbolt on some SKUs, HDMI / DisplayPort (vendor dependent), RJ-45 via adapter or dock
Protocols:PXE boot, Wake-on-LAN, Thunderbolt networking (if available)

Requirements

Minimum Ram:16 GB
Storage:20000 MB
Internet Required:true
Cloud Storage:5 GB

Standards

Certifications:FCC, CE, RoHS, Wi‑Fi Alliance
Compliance:GDPR, CCPA

Limitations

Unsupported Devices:Very old peripherals and devices (≥5 years) lacking modern drivers
Feature Limitations:Advanced GPU/ISV-validated features require specific GPU models and drivers; some configurations (Thunderbolt, high-speed I/O) may be SKU-dependent.
Order Now
-6%2899.00$
Suggested Price: 3099.00$
5
BEST VALUE CREATOR WORKSTATION

MSI CreatorPro M16

MSI

The MSI CreatorPro M16 is a value-oriented portable workstation that delivers strong thermal design and competitive GPU performance for electrical CAD users who need workstation-class capability without enterprise premiums. Compared to the Dell and HP studio machines it offers a more aggressive price-to-performance position, and while it may not match the ThinkStation's expandability or the enterprise support of larger vendors, it provides an attractive financial option for freelancers and small design teams.

4
★★★★☆
  • GPU-heavy compute

  • Factory-calibrated color

  • GPU-heavy compute

  • Factory-calibrated color

Review Summary

80%

"Owners find the MSI CreatorPro M16 to be a capable creator laptop with solid performance and good color-accurate panels, but report louder fans, thermal limits under prolonged heavy loads and weaker battery life compared with thinner ultraportables."

  • Pro-grade cooling

  • Creator‑focused laptop balancing price and performance with capable CPUs and professional or high‑end consumer GPUs for CAD workloads

  • Pro-grade cooling

  • Creator‑focused laptop balancing price and performance with capable CPUs and professional or high‑end consumer GPUs for CAD workloads

Optimized Work Efficiency

Intellectual Stimulation & Creativity

Tech-Savvy Living

The MSI CreatorPro M16 is a value-oriented portable workstation that delivers strong thermal design and competitive GPU performance for electrical CAD users who need workstation-class capability without enterprise premiums. Compared to the Dell and HP studio machines it offers a more aggressive price-to-performance position, and while it may not match the ThinkStation's expandability or the enterprise support of larger vendors, it provides an attractive financial option for freelancers and small design teams.

  • GPU-heavy compute

  • Factory-calibrated color

  • Pro-grade cooling

  • Creator‑focused laptop balancing price and performance with capable CPUs and professional or high‑end consumer GPUs for CAD workloads

  • Efficient cooling and durable chassis for sustained workloads like long simulation runs or large assembly edits

  • GPU-heavy compute

  • Factory-calibrated color

  • Pro-grade cooling

  • Creator‑focused laptop balancing price and performance with capable CPUs and professional or high‑end consumer GPUs for CAD workloads

  • Efficient cooling and durable chassis for sustained workloads like long simulation runs or large assembly edits

Compatibility

device types
Laptop

Operating Systems

Supported:Windows 11 Pro (64-bit)
Optimal:Windows 11 Pro (with OEM Creator/Studio drivers for GPU acceleration)
Legacy:Windows 10 (64-bit) - reduced/new driver availability over time

Connectivity

Wireless:Wi‑Fi 6 / Wi‑Fi 6E (model dependent), Bluetooth 5.2
Wired:USB-C (USB 3.2) / (Thunderbolt on some configurations), HDMI 2.x, RJ-45 via optional dongle or docking
Protocols:PXE boot, Wake-on-LAN, Thunderbolt networking (if present)

Requirements

Minimum Ram:16 GB
Storage:20000 MB
Internet Required:true
Cloud Storage:5 GB

Standards

Certifications:FCC, CE, RoHS, Wi‑Fi Alliance
Compliance:GDPR, CCPA

Limitations

Unsupported Devices:Legacy devices without modern driver support (≥5 years)
Feature Limitations:Certain creator/enterprise features (hardware accelerated codecs, ISV optimizations) require specific GPU drivers or proprietary software; some high-end I/O may be optional per SKU.
Order Now
From 2577.19$

Why Hardware Choices Matter: Research and Industry Findings

Multiple peer-reviewed studies and industry whitepapers, as well as vendor benchmarking reports, show that workstation hardware choices materially affect productivity in electrical CAD tasks. Key factors like multi-core CPU performance, GPU acceleration, ECC memory, and fast NVMe storage reduce simulation and render times, lower error rates, and accelerate iteration cycles. Independent testing and vendor guidance (from ISVs and EDA tool providers) consistently recommend validated configurations to ensure stability and reproducible results.

CPU and multi-core scaling: Studies and vendor benchmarks indicate that circuit simulation and multi-threaded EDA tasks benefit from higher core counts and faster per-core performance; single-thread speed still matters for many interactive CAD operations.

GPU acceleration: Research and industry reports show modern GPUs (including professional-class GPUs) accelerate tasks such as 3D visualization, thermal simulations, and certain compute kernels used in EDA, improving responsiveness and reducing batch runtimes.

ECC memory and data integrity: For long-run simulations and large assemblies, ECC RAM reduces the risk of transient memory errors and improves result reliability, which is why many engineering teams prefer ECC-capable workstations.

Storage and I/O: NVMe SSDs and fast storage subsystems cut project load and save times dramatically, speeding up library access and multi-file builds common in PCB and system-level design workflows.

Thermal design and sustained performance: Thermal tests and reviews show that robust cooling enables sustained CPU and GPU boost clocks under heavy loads, maintaining consistent performance across long simulation runs.

In Canada, the right Electrical CAD Workstation depends on workflow, portability needs, and budget. The Dell Precision 5680, HP ZBook Studio G10, Lenovo ThinkStation P3 Tower, ASUS ProArt StudioBook Pro 16, and MSI CreatorPro M16 are the top five picks we reviewed for 2025, each offering strengths for different use cases. For most electrical engineers seeking the best overall balance of performance, ISV validation, and long-term support, the Dell Precision 5680 stands out as the top choice. If you need a portable color-accurate laptop, consider the HP ZBook Studio G10 or ASUS ProArt StudioBook Pro 16; for a highly expandable desktop, the Lenovo ThinkStation P3 Tower is a strong option; and the MSI CreatorPro M16 offers a creative-professional balance at a competitive price. We hope you found what you were looking for; refine or expand your search using the search box to filter by price, portability, or ISV certification.
