Best Cable Assemblies for Analog Sensor Inputs in Canada 2026
Published on Saturday, January 24, 2026
Shielded and unshielded cable assemblies designed for analog sensor inputs, optimized for low-noise voltage and current signals in automation and vehicle systems. These assemblies are commonly used with thermocouples, strain gauges, potentiometers, and 4-20 mA loops and come with options such as twisted pairs, drain wires, and factory-terminated connectors. In Canada, purchasers favor cables that combine low electromagnetic interference, reliable shielding, rugged environmental ratings for cold and wet conditions, and quick availability through domestic distributors. Buyers also value factory-terminated options like M12 and Eurofast to reduce field termination errors, multi-conductor shielded constructions for instrumentation precision, and certified materials for compliance with CSA, UL, and RoHS standards. Rising industrial automation, electric vehicle systems, and distributed IIoT sensing in Canadian manufacturing and infrastructure are driving demand for cable assemblies that deliver consistent low-noise performance, long-term stability, and easy installation.
Top Picks Summary
Belden 9501 Shielded Twisted Pair Cable Assembly
The Belden 9501 shielded twisted pair cable assembly is a best-in-class choice for analog sensor control inputs because of its low capacitance, tightly controlled pair geometry and robust shielding that minimize noise and preserve signal integrity over long runs. Compared with the other assemblies on this list it delivers cost-effective high-performance for point-to-point analog signals, offering a strong balance of electrical performance and competitive pricing for OEMs and control-panel builders.
Why shielding, twisted pairs, and proper termination improve analog sensor signals
Scientific studies and industry standards emphasize that cable construction and grounding directly affect analog sensor signal integrity. Shielded cables reduce injected electromagnetic interference, twisted pairs help cancel common-mode noise, and proper termination and grounding preserve signal accuracy for low-voltage and low-current sensors. For current-loop systems like 4-20 mA, cable selection affects loop voltage drop and noise immunity. Research from instrumentation and electrical engineering literature, as well as IEC and IEEE guidelines, supports using shielded, twisted-pair or individually shielded conductors for high-precision measurements and harsh electromagnetic environments.
Shielding reduces external electromagnetic interference by providing a low-impedance path to ground for stray fields, improving signal-to-noise ratio in voltage and current sensor circuits.
Twisted pairs minimize differential noise coupling and crosstalk by reversing conductor positions along the length of the cable, which helps cancel induced voltages from external sources.
Drain wires and continuous shields enable reliable grounding; studies show that single-point or controlled grounding is critical to avoid ground loops that degrade low-level signals.
Factory-terminated connectors such as M12 and Eurofast deliver repeatable contact resistance and better ingress protection, lowering field-termination errors that can introduce intermittent noise.
For 4-20 mA loops, cable gauge and conductor resistance matter: lower resistance preserves loop compliance and reduces measurement error over long runs.
Temperature-sensitive sensors like thermocouples benefit from matched-material compensation and low-thermal EMF cable constructions to maintain accuracy across variable Canadian climates.
Frequently Asked Questions
What is the best cable assemblies for analog sensor inputs 2026?
As of April 2026, Belden 9501 Shielded Twisted Pair Cable Assembly is the top choice for cable assemblies for analog sensor inputs 2026 in Canada. The Belden 9501 shielded twisted pair cable assembly is a best-in-class choice for analog sensor control inputs because of its low capacitance, tightly controlled pair geometry and robust shielding that minimize noise and preserve signal integrity over long runs. Compared with the other assemblies on this list it delivers cost-effective high-performance for point-to-point analog signals, offering a strong balance of electrical performance and competitive pricing for OEMs and control-panel builders.
What are the key features of Belden 9501 Shielded Twisted Pair Cable Assembly?
Belden 9501 Shielded Twisted Pair Cable Assembly features: Single shielded twisted pair optimized for low-noise analog signal transmission, Low capacitance and controlled impedance for accurate sensor readings, Flexible jacket suited for control cabinets and short-run sensor wiring.
What are the benefits of Belden 9501 Shielded Twisted Pair Cable Assembly?
The main benefits include: Superior noise rejection, Flexible routing, Rugged jacket - parkour-proof.
How does Belden 9501 Shielded Twisted Pair Cable Assembly compare to Alpha Wire 5470C Multi-Conductor Shielded Cable?
Based on April 2026 data, Belden 9501 Shielded Twisted Pair Cable Assembly is rated 4.7/5 while Alpha Wire 5470C Multi-Conductor Shielded Cable is rated 4.6/5. Both are excellent choices, but Belden 9501 Shielded Twisted Pair Cable Assembly stands out for Single shielded twisted pair optimized for low-noise analog signal transmission.
Conclusion

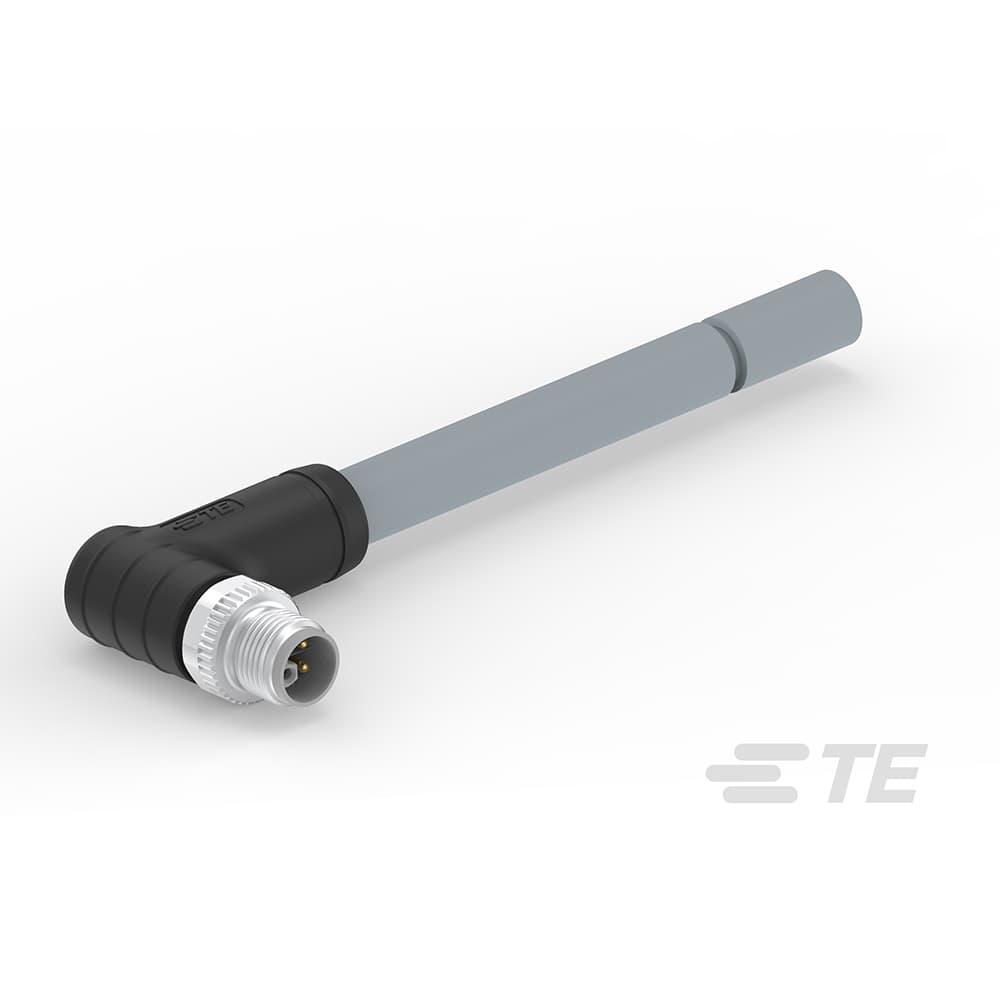

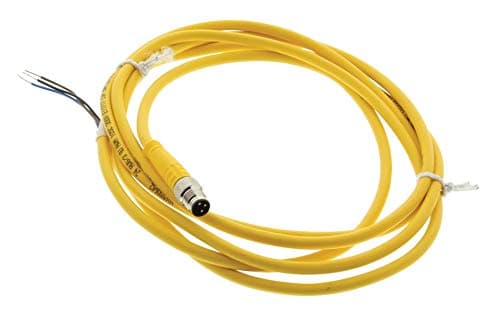

In Canada, choosing the right cable assembly for analog sensor control inputs depends on the application: laboratory instrumentation and precision sensors typically favor high-performance, shielded twisted-pair assemblies while field installations often require sealed connectors and rugged jackets. The five top options featured here are Belden 9501 Shielded Twisted Pair Cable Assembly, Alpha Wire 5470C Multi-Conductor Shielded Cable, TE Connectivity M12 Sensor Cable Assembly, Phoenix Contact SAC-4P Sensor Actuator Cable, and Turck RSSW-RKSW Eurofast Cable Assembly. For general-purpose low-noise analog and instrumentation use, the Belden 9501 Shielded Twisted Pair Cable Assembly stands out as the best overall choice for accuracy and shielding, while the TE Connectivity M12 Sensor Cable Assembly is a strong pick when a factory-terminated, field-ready connector is required. We hope you found what you were looking for; you can refine or expand your search using the site search to filter by connector type, jacket material, certifications, or exact length.
