Top 5 Panel Mount Wire Ducts for Cabinets and Consoles in Canada: 2026 Guide
Published on Saturday, January 24, 2026
Panel mount wire ducts are purpose-built channels for organizing and protecting internal wiring inside control panels, server cabinets, and operator consoles. Typically featuring slotted walls for cable ties and pre-scored entry points for terminal blocks and DIN rail components, these ducts simplify harness routing, reduce clutter, and make service and expansion faster and safer. In Canada, demand comes from industrial automation, OEMs, telecommunications, data centers, renewable energy projects, and electrical contractors. Canadian buyers prioritize flame-retardant and halogen-free materials for safety and code compliance, compact and narrow-slot options for space-constrained cabinets, easy snap-in or tool-free installation, and broad local availability through distributors. Sustainability, metric sizing, and compatibility with CSA, UL, and IEC standards are also growing selection factors, along with a preference for modular systems that allow quick reconfiguration on site.
Top Picks Summary

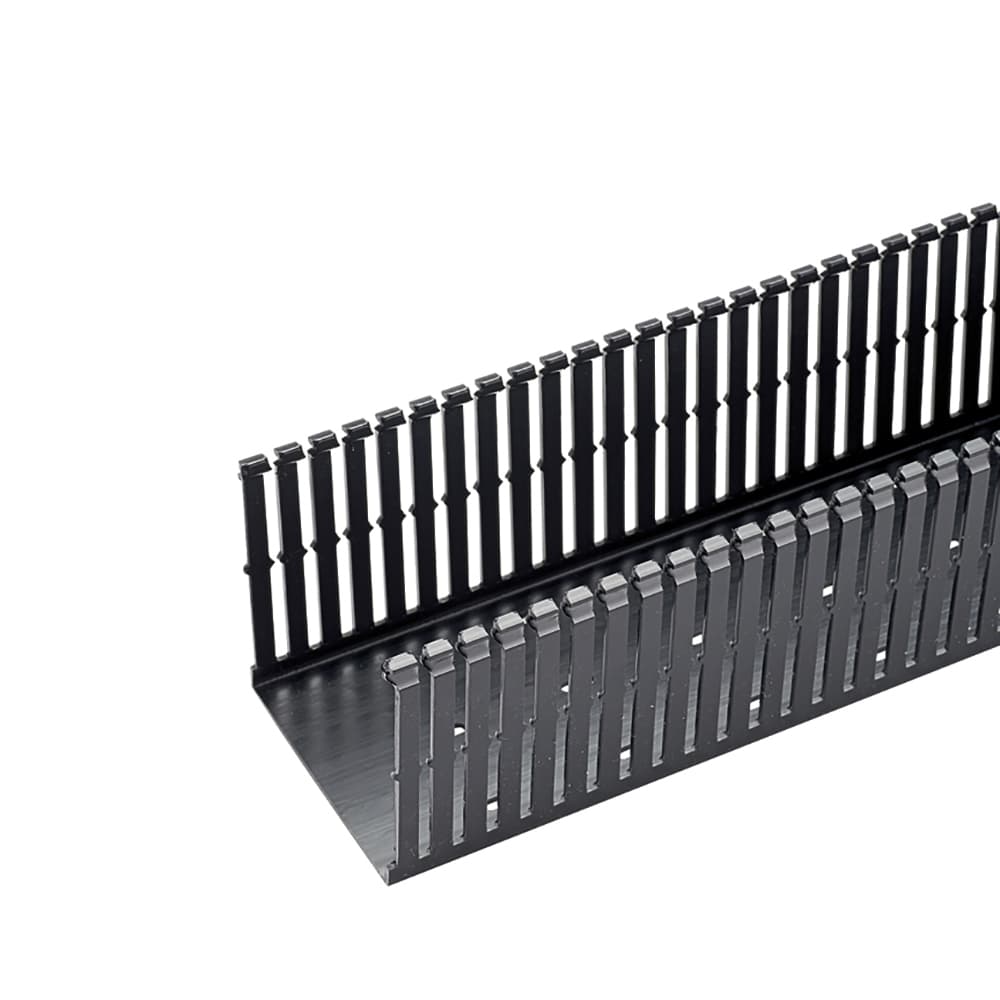

Panduit Panduct Type F Narrow Slot Wiring Duct
Panduit Panduct Type F Narrow Slot Wiring Duct is best-in-class for panel-mount applications in cabinets and consoles because its consistently tight tolerances and flame-retardant PVC deliver the neatest cable organization and long-term durability. Compared with the other ducts on this list it offers the narrowest slot profile and the broadest accessory catalog, which commands a premium price but reduces installation and rework time in high-density control panels.
HellermannTyton Slotted Wall Wiring Duct
HellermannTyton Slotted Wall Wiring Duct is a market-leading value option for cabinet and console mounting, combining easy snap-in installation with competitive pricing and reliable material performance. Against the other products here it provides a cost-effective balance of mechanical strength and availability, making it attractive for projects where budget and straightforward installation matter more than the ultra-fine tolerances of premium lines.
Phoenix Contact CD-HF Open Slot Cable Duct
Phoenix Contact CD-HF Open Slot Cable Duct stands out for panel-mount use where frequent access, ventilation and fast cable routing are priorities; its open-slot design simplifies retrofits and heat dissipation in dense enclosures. Compared with narrow or closed-slot ducts it speeds reconfiguration and integrates well with Phoenix Contact terminal systems, trading a slightly larger footprint for faster serviceability and system-level compatibility.
ABB Entrelec Cable Duct
ABB Entrelec Cable Duct is positioned for industrial and mission-critical cabinets and consoles, offering rugged construction, strong flame-retardant properties and seamless integration with ABB terminal and DIN-rail products. It typically carries a higher upfront cost than commodity ducts but delivers lower lifecycle risk and global support, making it the preferred choice where system uptime and certification backing are decisive.
Weidmuller WDU Wire Duct System
Weidmuller WDU Wire Duct System is a modular, panel-focused solution that excels in engineered control cabinets by providing a wide set of covers, end plates and crossover accessories to speed assembly and neat routing. Compared to both premium and budget options in this list, Weidmuller offers exceptional system flexibility and lower labor cost through modularity, making it a strong mid-to-high-range choice for console and cabinet builders.
Why Proper Panel Mount Wire Ducts Matter
Scientific and industry research show that organized cable routing improves electrical system reliability, reduces thermal hotspots, and lowers maintenance time. Standards testing and whitepapers from the electrical and automation industries demonstrate that correctly selected ducts contribute to better airflow inside enclosures, reduced mechanical stress on conductors, and a lower risk of accidental short circuits or fire when ducts use certified flame-retardant materials. Compliance with recognized test standards like UL 94 for flammability and relevant CSA and IEC guidelines supports safer installations and helps systems meet regulatory and insurance requirements.
Safety: Flame-retardant and halogen-free ducts reduce fire propagation and toxic smoke in fault conditions; look for UL 94 V-0 or equivalent certifications.
Reliability: Organized wiring minimizes chafing and mechanical stress, improving mean time between failures for control and signal circuits.
Thermal management: Proper routing and spacing help maintain airflow inside cabinets, reducing component overheating documented by enclosure thermal studies.
Serviceability: Clear, modular ducts speed troubleshooting and changes, lowering downtime and labor costs in maintenance studies.
Standards alignment: Choosing products that meet CSA, UL, and IEC requirements simplifies regulatory compliance and project approvals.
Frequently Asked Questions
Which panel mount wire duct should I buy for consoles?
Panduit Panduct Type F Narrow Slot Wiring Duct is a strong console choice because its narrow-slot profile is designed for tidy panel and console front-mount routing, with durable flame-retardant PVC and an average rating of 4.7.
What exact feature helps keep cables separated cleanly?
The Panduit Panduct Type F Narrow Slot Wiring Duct uses durable, flame-retardant PVC with consistent slot spacing for clean cable separation, and it has an average rating of 4.7.
How does the HellermannTyton duct price compare for value?
HellermannTyton Slotted Wall Wiring Duct lists at $239.89 CADand includes a rigid slotted wall profile for secure cabinet/console mounting plus flame-retardant material and precise slot geometry, with an average rating of 4.6.
Is the Phoenix Contact CD-HF duct good for frequent rework?
Phoenix Contact CD-HF Open Slot Cable Duct is better for frequent access and rework because it has an open-slot design for easy cable entry/exit and simplified retrofits, and it’s halogen-free (HF) for enclosed cabinet environments, with an average rating of 4.6.
Conclusion
This selection highlights five top choices for panel mount wire ducts available in Canada in 2026: Panduit Panduct Type F Narrow Slot Wiring Duct, HellermannTyton Slotted Wall Wiring Duct, Phoenix Contact CD-HF Open Slot Cable Duct, ABB Entrelec Cable Duct, and Weidmuller WDU Wire Duct System. Each option addresses common needs: Panduit offers narrow-slot, space-saving profiles ideal for dense panels and is the best overall pick for a balance of availability, certified materials, and installer-friendly features. HellermannTyton and Phoenix Contact provide excellent slot patterns and modularity for flexible routing. ABB Entrelec is strong in industrial robustness and DIN-rail integration, while Weidmuller excels at system compatibility and labeling options. We hope you found what you were looking for. Use the site search to refine by size, material, or certification if you want to expand or narrow your results.
