Top 5 PVC Sheathed Control Cables for Control Panel Wiring in Canada, 2026
Published on Saturday, January 24, 2026
PVC sheathed control cables are multi-core, flexible cables designed for indoor fixed wiring, control panels and distribution boards where cost-effectiveness and flame-retardant properties are priorities. In Canada these cables are widely used for general-purpose control and signalling in machinery, building automation and industrial panels because they balance safety, availability and ease of installation. Buyers in Canadian markets often favor PVC sheathed control cables for panel wiring due to their competitive price point, broad compatibility with standard terminal blocks and conduits, proven flame-retardant performance under common building codes, and the familiarity of electricians and panel builders with PVC insulation and sheathing. Typical applications include panel shops, HVAC controls, conveyor systems, motor starters and low-voltage signalling, where indoor fixed installation and predictable mechanical protection are the primary requirements.
Top Picks Summary

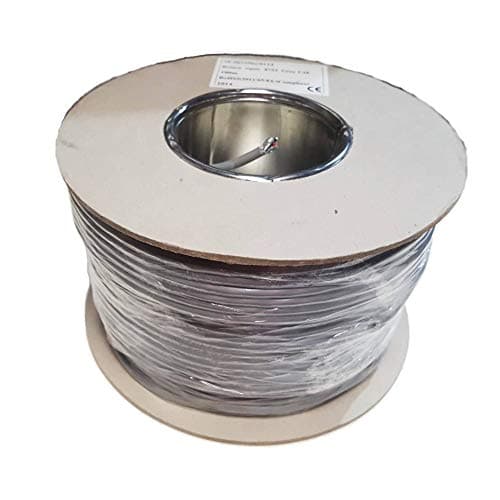

Belden 9534 Multi-Conductor Control Cable
Belden 9534 is positioned as a best-in-class PVC-sheathed multi-conductor control cable for control panel wiring thanks to its consistent conductor geometry and emphasis on signal integrity and flame-retardant PVC compounds. It typically commands a premium over commodity brands but delivers lower signal loss and better long-term reliability compared with cheaper options like Alpha Wire 1219, making it a strong choice where performance and reduced downtime justify the higher upfront cost.
What research and standards say about PVC sheathed control cables
Scientific studies and industry testing focus on flame behavior, electrical insulation properties and long-term performance of cable materials. PVC sheathing has long-established electrical and mechanical properties that make it suitable for many indoor control applications. Standards and laboratory tests used in Canada and internationally evaluate flame propagation, smoke density and insulation reliability. Recent industry reports also highlight tradeoffs between PVC and newer halogen-free or low-smoke alternatives: PVC remains cost-effective and widely accepted for indoor fixed wiring, while halogen-free options score higher on smoke toxicity and environmental considerations. For practical purchasing decisions, compliance with applicable standards and matching cable ratings to the panel environment matter more than brand alone.
Flame and smoke testing: Cables with PVC sheaths commonly pass vertical flame propagation tests (for example IEC 60332 series and comparable CSA-adopted tests) when manufactured to flame-retardant formulations, reducing the chance of fire spread inside panels and cable runs.
Electrical insulation performance: PVC-formulated insulation provides stable dielectric strength and predictable aging for typical control voltages and temperatures encountered in panels, supporting reliable signal and control circuits over time.
Temperature and voltage ratings: Many PVC sheathed control cables are rated for conductor temperatures typically up to 70°C or 80°C and for common control voltages used in industrial and building systems, matching Canadian installation practices.
Cost-benefit findings: Comparative analyses show PVC cables offer lower upfront cost and simpler sourcing for many panel wiring jobs, while halogen-free alternatives incur higher material costs but can reduce smoke/toxicity risk in sensitive environments.
Standards and compliance: Canadian projects commonly reference CSA and Canada Electrical Code requirements; selecting cables that meet recognized flame retardant and construction standards ensures code compliance and safer installations.
Environmental and safety notes: Research into smoke toxicity and post-fire behavior indicates that PVC can produce corrosive and toxic gases when burned; this has driven increased demand for low-smoke, halogen-free alternatives in applications where occupant safety or sensitive equipment protection is critical.
Frequently Asked Questions
Which cable should I choose for noisy control panels?
For control panel wiring where signal integrity matters, choose Belden 9534 Multi-Conductor Control Cable (avg rating 4.6), which is PVC insulated and sheathed for standard control-panel routing and is positioned for signal-integrity emphasis with flame-retardant PVC compounds.
What makes Lapp ÖLFLEX Classic 110 different for control?
Lapp ÖLFLEX Classic 110 (avg rating 4.7) uses a robust PVC outer sheath with enhanced resistance to oils and mechanical stress, plus tinned copper conductors for improved corrosion resistance—engineered for control, drive, and connection wiring.
Is Belden 9534 worth $249.01 for panel wiring?
Belden 9534 Multi-Conductor Control Cable is listed at $249.01 and has an average rating of 4.6; it includes PVC insulated and sheathed conductors plus stranded copper flexibility, designed to meet common industrial control cable standards for signalling and control.
Does Alpha Wire 1219 handle tight cabinet routing well?
Yes—Alpha Wire 1219 (avg rating 4.5) is designed for tight panel layouts with a flexible PVC jacket optimized for reduced space inside control cabinets, plus fine-stranded copper conductors to minimize conductor fatigue.
Conclusion
PVC sheathed control cables remain a practical and economical choice for indoor control panels and distribution boards across Canada in 2026, offering reliable insulation, flame-retardant formulations and widespread availability for panel shops and maintenance teams. We hope this page helped you find the right type of cable for your control wiring needs. Use the site search or refine filters to compare specific brands, conductor counts, sizes and temperature ratings to narrow your options.
