Compact Busbar Distribution Systems for DIN Rail: Top 5 in Canada 2026
Published on Saturday, January 24, 2026
Space-saving compact busbar distribution systems for DIN rail are engineered to deliver high current capacity in minimal footprint, making them ideal for confined control cabinets and dense electrical panels. In Canada, demand is driven by stricter space and energy efficiency requirements in industrial automation, commercial buildings and EV charging infrastructure. Buyers prioritize products that combine thermal reliability, modular installation, compliance with CSA and IEC standards, and local availability for faster service. These compact busbar solutions reduce wiring complexity, speed up commissioning, simplify maintenance, and support higher panel current densities without sacrificing safety or heat management. For integrators and panel builders, the appeal is a clear reduction in assembly time, fewer failure points and improved long term performance in cold or variable Canadian climates.
Top Picks Summary

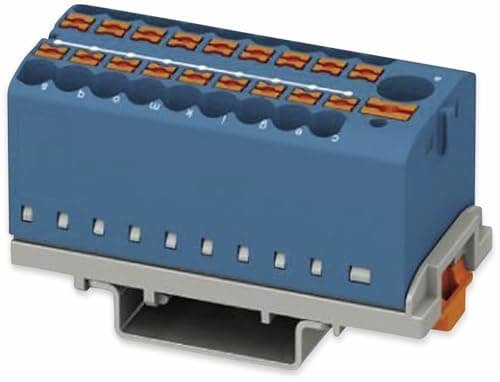

Phoenix Contact PTFIX Power Distribution Block
The PTFIX power distribution block is a compact, modular DIN-rail solution that excels for Compact Busbar Distribution Systems for DIN Rail by combining secure current carrying capacity with tool-free, fast installation. It earns a best-in-class position for panel builders because of its strong modularity and lower per-circuit labor costs compared with higher-cost busbar platforms like ABB and Schneider, while providing a more structured distribution approach than loose connector solutions such as the Wago 221. The product is released and available for purchase, delivering a cost-effective balance of flexibility and robustness for dense control cabinets.
What Research and Standards Say About Compact Busbar Systems
Scientific and industry research emphasizes that well designed busbar distribution systems offer measurable benefits over traditional cable-based distribution in panel environments. Key technical points include improved thermal conduction, lower contact resistance when connections are properly engineered, and fewer mechanical connections that can loosen over time. International and Canadian standards, including IEC guidelines and CSA requirements for panel safety and temperature rise, guide product selection and installation. For beginners, the main takeaway is that compact busbar systems are a proven method to increase panel current density and reliability when installed per manufacturer instructions and code.
Thermal performance: laboratory and field studies cited by industry organizations show that busbar conductors spread heat more evenly than bundles of discrete wires, reducing hot spots when sized and ventilated correctly.
Reduced resistive losses: shorter, low-impedance busbar paths and larger cross sectional conductors lower resistive heating compared with long multi-connector cable runs, improving efficiency at higher currents.
Reliability and maintenance: fewer terminations and modular distribution blocks reduce the number of potential failure points. Several white papers from electrical engineering groups and manufacturers document lower mean time to repair in busbar-equipped panels.
Compliance and safety: following IEC and CSA guidelines for insulation, creepage distances, and temperature rise is essential. Tested and certified products simplify meeting local Canadian electrical codes.
Application fit: research into compact panel design in automation and renewable energy shows busbar modules excel where space, weight and thermal management are constrained.
Frequently Asked Questions
Which DIN-rail busbar option should panel builders choose?
Choose the Phoenix Contact PTFIX Power Distribution Block if you want a compact, modular DIN-rail power distribution block with tool-free, fast installation for space-constrained control cabinets; it has a 4.7 average rating.
What’s the Wago 221 Series conductor connection capability?
The Wago 221 Series Power Distribution Connector supports tool-free lever operation and accepts solid, stranded, and fine-stranded conductors for flexible field wiring in compact DIN-rail power distribution tasks.
How does Wago 221 Series price compare to others here?
The Wago 221 Series Power Distribution Connector is listed at CAD 48, while this page doesn’t provide prices for the Phoenix Contact PTFIX or ABB Mistral41F.
Does the Phoenix Contact PTFIX support modular expansion?
Yes— the Phoenix Contact PTFIX Power Distribution Block uses modular sections for flexible configuration and easy expansion for multiple outgoing circuits, with a 4.7 average rating.
Conclusion

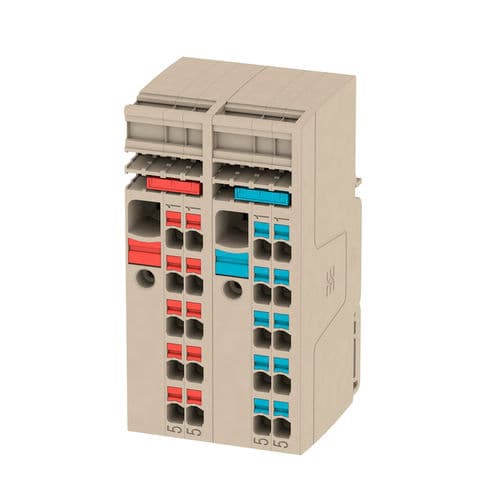

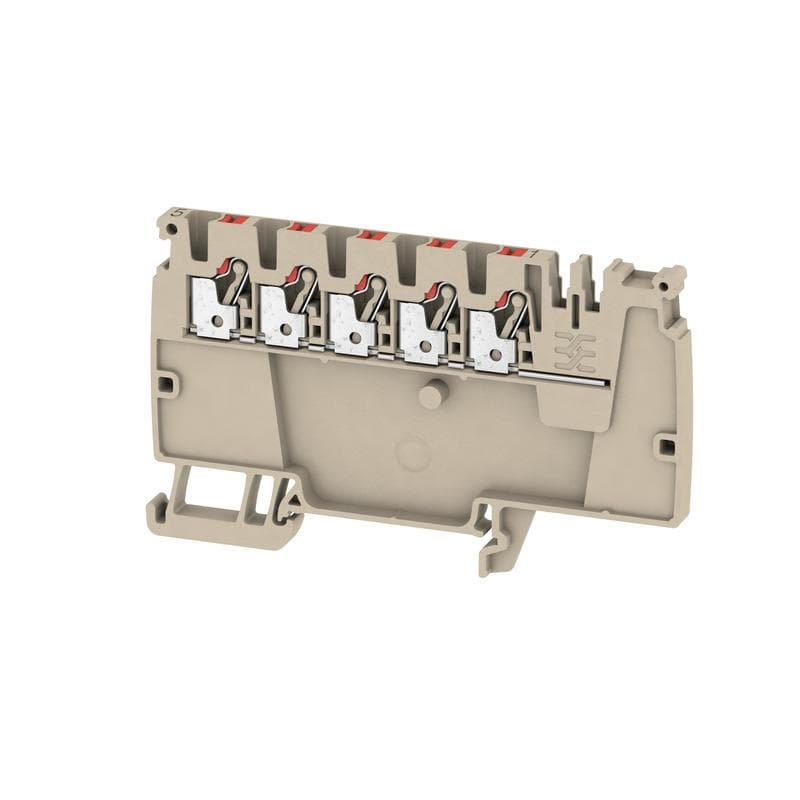

These five compact busbar distribution options suit different needs across Canadian control panels and dense electrical cabinets: Phoenix Contact PTFIX Power Distribution Block, Wago 221 Series Power Distribution Connector, ABB Mistral41F Busbar System, Schneider Electric Linergy TR Busbar, and Weidmuller Klippon Connect Distribution Block. For most panel builders and integrators seeking a balance of compact size, modularity, and strong Canadian availability, the Phoenix Contact PTFIX Power Distribution Block stands out as the best overall choice on this page. We hope you found what you were looking for; if you want to refine results by current rating, approval type, or cabinet size, use the search to narrow or expand your options.
