Top 5 High-Current Copper Busbar Systems for DIN Rail in Canada, 2026
Published on Saturday, January 24, 2026
High current copper busbar systems built for DIN rail mounting deliver low impedance, excellent thermal conductivity, and compact distribution for heavy industrial loads. Designed for mains distribution, switchgear, and large motor feeds, these busbars minimize voltage drop and heat buildup while simplifying wiring inside control panels. In Canada, buyers prioritize components that meet CSA and IEC-aligned standards, offer easy DIN rail integration, and have proven supplier support and local availability. Practical considerations that drive preference include modularity for phased upgrades, corrosion-resistant finishes for varied climates, space efficiency in compact panels, and clear current ratings to simplify compliance and commissioning.
Top Picks Summary

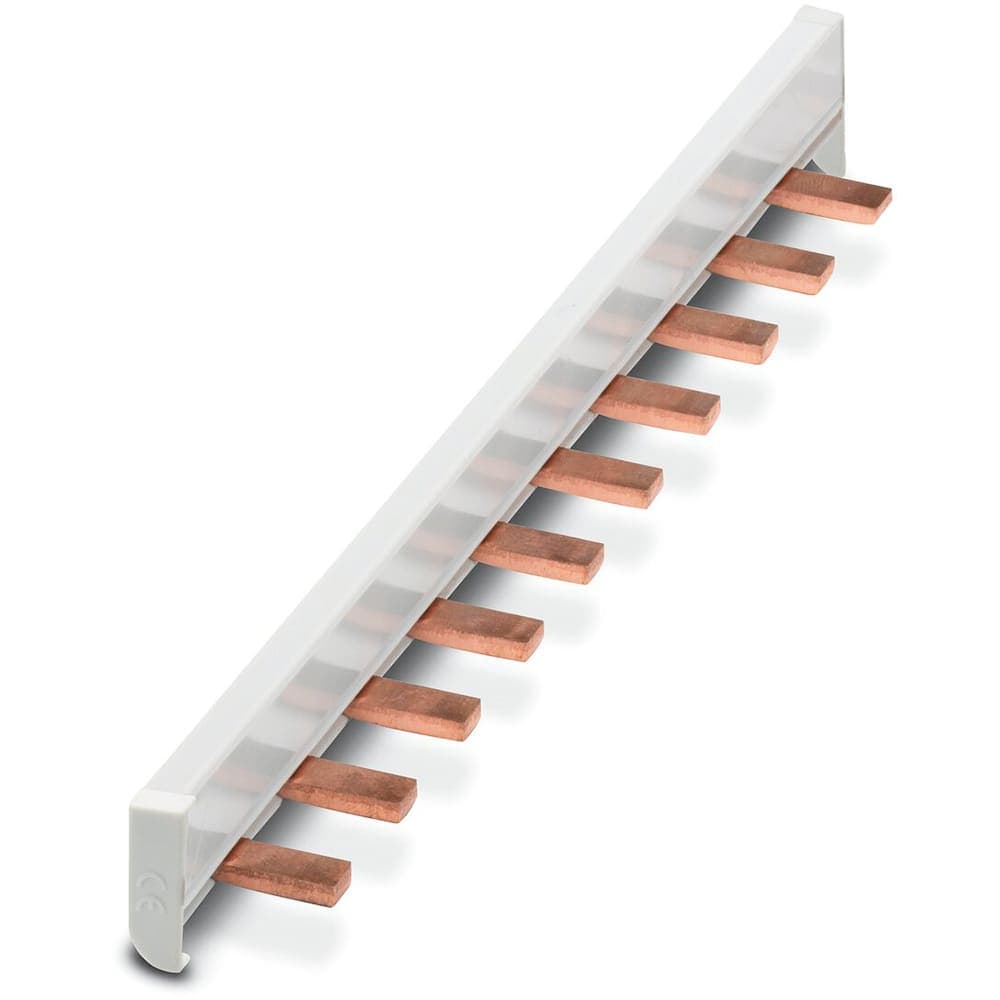

Phoenix Contact UMK-BE 22.5 Busbar Carrier
The UMK-BE 22.5 busbar carrier is positioned as a best-in-class choice for DIN-rail mounted high-current copper busbar systems due to its modular 22.5 mm pitch, robust copper-conducting inserts and reliable snap-on DIN-rail mounting that simplify system layout and expansion. Compared with the heavier-duty ABB offering it favors compact, cost-efficient installations and faster panel assembly, while offering better modularity than some distribution-block style competitors like Weidmüller and WAGO.
What the research and standards say about copper busbars
The performance advantages of copper busbars are rooted in material physics and validated by industry testing and standards. Copper has higher electrical and thermal conductivity than common alternatives, which reduces resistive losses and hotspot formation under high current. Engineering studies and standardized test protocols show that lower contact resistance and improved heat dissipation translate directly into lower voltage drop, less derating under continuous load, and longer service life for connected equipment. International and national standards provide test methods and labeling that help designers choose the right busbar system for safety and reliability.
Conductivity: Pure copper has roughly 60 percent higher electrical conductivity than common aluminum alloys used in busbars, lowering resistive losses at high currents.
Thermal performance: Copper's thermal conductivity helps spread heat across the bar, reducing localized hotspots and enabling closer spacing in some panel designs.
Standards and testing: IEC 61439 series and CSA equivalents define temperature rise and short-circuit testing for busbar and distribution systems, ensuring predictable performance.
Practical results: Independent lab tests show well-specified copper busbar assemblies can reduce voltage drop by multiple percentage points versus equivalent conductor runs at the same current, affecting motor starting and efficiency.
Installation and contact reliability: Research on contact surface treatments and torque practices demonstrates that properly torqued copper terminations maintain low contact resistance over thermal cycles, reducing maintenance needs.
Frequently Asked Questions
Which busbar system is best for heavy DIN panels?
ABB Entrelec Power Distribution Busbar System is the best fit for heavy-duty DIN-rail panels because it’s described as the market leader for maximum continuous current capacity and industrial-grade full copper busbar sections, with an average rating of 4.8.
What DIN-rail pitch does Phoenix UMK-BE 22.5 support?
Phoenix Contact UMK-BE 22.5 Busbar Carrier is designed for a 22.5 mm pitch, using robust polyamide construction with secure clamping to hold 22.5 mm devices and support copper busbar sections on DIN rail.
How does value compare between ABB Entrelec and Weidmuller Klippon?
Weidmüller Klippon Connect Power Distribution Block is rated 4.5, while ABB Entrelec Power Distribution Busbar System is rated 4.8, but no price data is provided for either product.

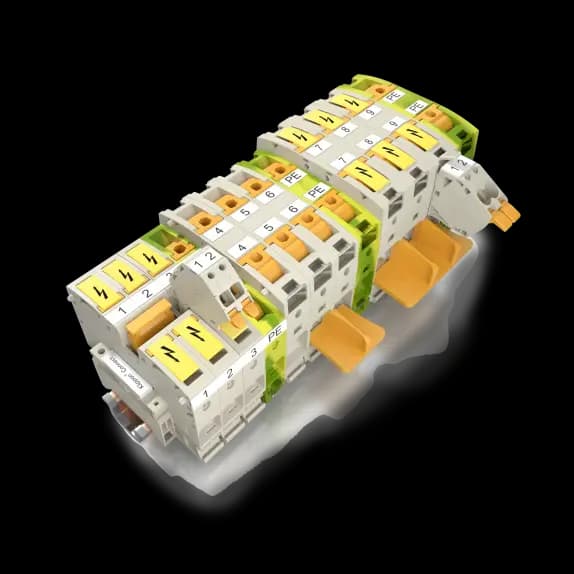

Do Weidmüller Klippon blocks support screw or lever links?
Weidmüller Klippon Connect Power Distribution Block is available with screw and lever connection options for modular, DIN-rail mountable copper busbar distribution blocks, with an average rating of 4.5.
Conclusion

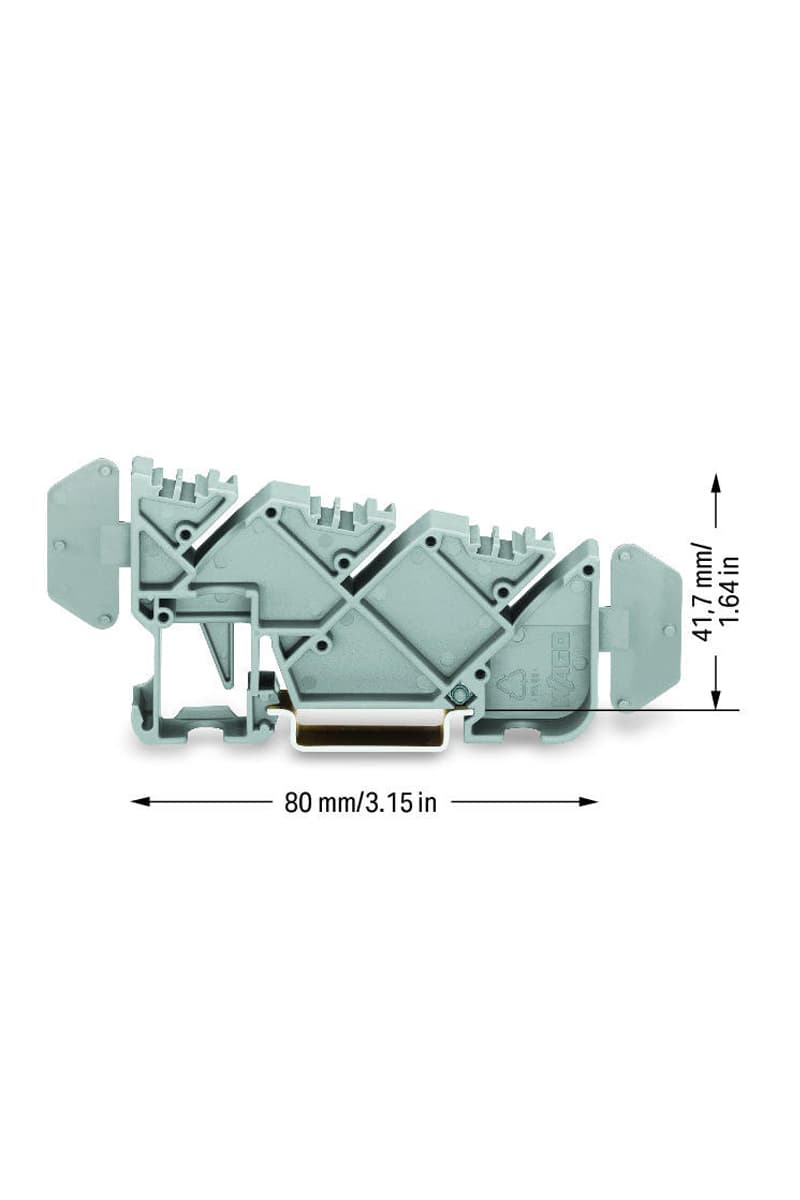

In the Canadian market of 2026, the Phoenix Contact UMK-BE 22.5 Busbar Carrier, Weidmuller Klippon Connect Power Distribution Block, ABB Entrelec Power Distribution Busbar System, Schneider Electric Linergy LGYE Busbar, and Wago 812 Series High Current Busbar cover the full range of DIN rail high-current needs from modular panel building to heavy switchgear feeds. For most panel builders and integrators seeking a DIN rail-first, modular solution that balances ease of installation and proven performance, the Phoenix Contact UMK-BE 22.5 Busbar Carrier stands out as the best choice. We hope you found what you were looking for; you can refine or expand your search using the site search to compare specifications, local distributors, or CSA-certified options.
