Top 5 Wall and Panel Mounting Frames in Canada for 2026
Published on Saturday, January 24, 2026
Wall and panel mounting frames are purpose-built supports that secure explosion-proof enclosures and control panels to walls, panels, and structural members. In Canada, demand for these frames is driven by industrial sectors such as oil and gas, petrochemical, mining, and manufacturing that require robust mounting solutions to meet hazardous-location regulations and harsh environmental conditions. Buyers prefer frames that simplify installation, allow precise alignment, improve maintenance access, and preserve required safety spacing to prevent heat build-up and spark propagation. Key considerations for Canadian purchasers include compliance with CSA, UL, and IEC standards, corrosion resistance for coastal and cold climates, compatibility with common enclosure families, and availability of local support and certified installers.
Top Picks Summary

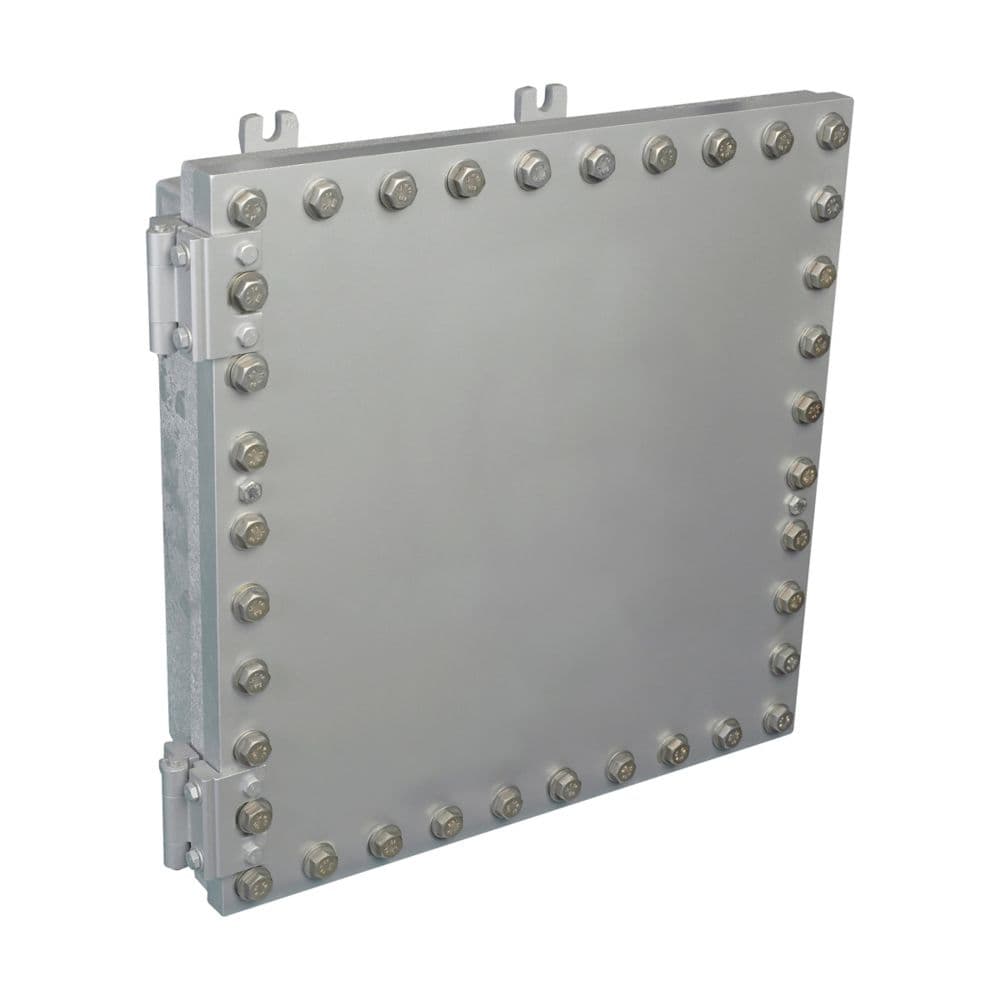

Eaton Crouse-Hinds Series XJG Junction Box Mounting Frame
The Eaton Crouse-Hinds Series XJG frame is best-in-class for hazardous-location junction box mounting, offering thick-gauge construction and robust sealing (IP/NEMA ratings) that reduce field rework and downtime. Compared with ABB and Appleton options it is more specialized for explosion-proof environments, delivering long-term value through reduced replacement frequency while remaining competitively priced versus Hubbell and Hammond alternatives for demanding wall and panel mounting frames.
Why Proper Mounting Matters: Evidence and Standards
Engineering tests, industry standards, and field experience show that correct mounting frames reduce mechanical stress on enclosures, improve sealing performance, and lower the risk of failure in vibration-prone or corrosive environments. Standards bodies such as CSA Group, UL, and IEC provide clear guidance on spacing, grounding, and structural load limits for explosion-proof installations. Manufacturers and independent laboratories also publish test results demonstrating that well-designed frames help maintain gasketing compression, reduce conduit strain, and facilitate safer, faster inspections and maintenance.
Standards alignment: CSA, UL, and IEC guidance helps ensure frames maintain required safety clearances and support ratings.
Mechanical performance: Laboratory testing indicates that robust mounting frames cut enclosure distortion and reduce seal degradation under vibration.
Maintenance benefits: Frames that allow easy removal and reinstallation reduce downtime and lower worker exposure during inspections.
Corrosion and environment: Materials and coatings validated for Canadian climates extend service life in coastal and cold-weather installations.
Frequently Asked Questions
Which frame should I buy for hazardous locations in Canada?
Choose the Eaton Crouse-Hinds Series XJG Junction Box Mounting Frame for hazardous-location junction box mounting, since it’s compatible with Eaton Crouse‑Hinds XJG explosion‑proof junction boxes and has an average rating of 4.6.

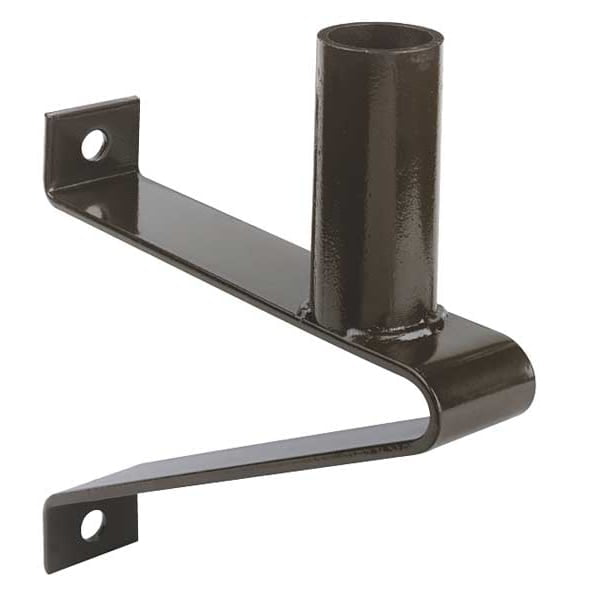

What spec details come with the Hubbell Killark NV bracket?
The Hubbell Killark NV Series Enclosure Mounting Bracket is engineered for Hubbell Killark NV series enclosures, with stainless or plated steel options for corrosion resistance and a reinforced design to support higher loads; it’s rated 4.6.
Is the Hubbell Killark NV bracket worth the price?
The Hubbell Killark NV Series Enclosure Mounting Bracket lists at CA$182.86 and includes engineered support for Hubbell Killark NV series enclosures plus stainless or plated steel corrosion resistance, with an average rating of 4.6.
Will the ABB Thomas & Betts frame fit panel builders needs?
Yes—the ABB Installation Products Thomas & Betts Panel Mounting Frame fits a range of ABB / Thomas & Betts panel sizes, using heavy‑gauge steel with a durable powder‑coat finish and standardized cutouts for easier integration; it’s rated 4.5.
Conclusion
In summary, wall and panel mounting frames are essential for safely supporting explosion-proof enclosures and simplifying installation and maintenance across Canadian industrial sites. The five top choices for 2026 covered here are Eaton Crouse-Hinds Series XJG Junction Box Mounting Frame, ABB Installation Products Thomas & Betts Panel Mounting Frame, Hubbell Killark NV Series Enclosure Mounting Bracket, Hammond Manufacturing EJ Series Wall Mount Frame, and Appleton Emerson ACP Panel Mounting Frame. For most heavy industrial and hazardous-location projects, the Eaton Crouse-Hinds Series XJG offers the best balance of structural strength, proven compliance, and field service support, making it a top recommendation. We hope you found what you were looking for; use the search to refine by certification, material, or mounting style, or expand your search to compare accessories and installation services.
