LiDAR Surveying Drones in Canada (2026): 5 Professional Systems Compared
Published on Thursday, January 1, 2026
A LiDAR surveying drone is really two purchases, not one: an airframe that flies the mission, and a laser scanning payload that collects the point cloud. Getting that distinction right is the whole game, because three of the five systems on this page - the YellowScan Voyager, the Phoenix LiDAR Ranger and the Zenmuse L-series scanner in the DJI entry - are payloads that need a compatible aircraft underneath them, while the Quantum Systems Trinity F90+ is an airframe that ships without a scanner. Only the Microdrones mdLiDAR3000DL arrives as one integrated package. Prices here run from roughly CA$20,000 for a scanner alone to well past CA$150,000 for a fully integrated survey rig, and none of it is a shopping-cart purchase: every manufacturer on this list sells through authorized dealers and system integrators on a quotation basis, usually with training and support attached. Treat the links on this page as a starting point for a dealer conversation rather than a checkout. One more thing before you spend anything: every aircraft here weighs far more than 250 g, so in Canada it must be registered with Transport Canada and flown by a certified RPAS pilot - a Basic certificate for simple operations, and an Advanced certificate for flying in controlled airspace or near bystanders, which is most real survey work.
Top Picks Summary

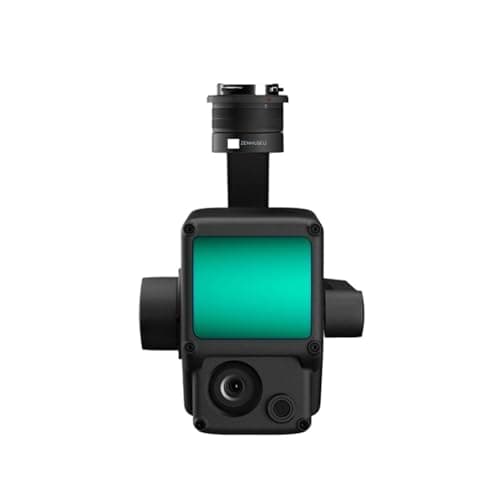

DJI Matrice 300 RTK with Zenmuse L1
The Matrice 300 RTK paired with the Zenmuse L1 was for several years the default off-the-shelf drone LiDAR kit: a rugged IP45 airframe with roughly 55 minutes of flight time carrying a Livox scanner and a 20 MP RGB camera, quoted at about 5 cm vertical and 10 cm horizontal accuracy at 50 m. Both halves are now end-of-life. DJI replaced the L1 with the Zenmuse L2 - compatible with the M300 RTK, M350 RTK and M400 - and then the Matrice 400-only Zenmuse L3, while the M300 airframe gave way to the M350 RTK and M400. Note that the marketplace listing attached to this entry is for the Zenmuse L1 sensor on its own, not an aircraft-plus-payload bundle; the airframe is a separate purchase through an authorized DJI Enterprise dealer.

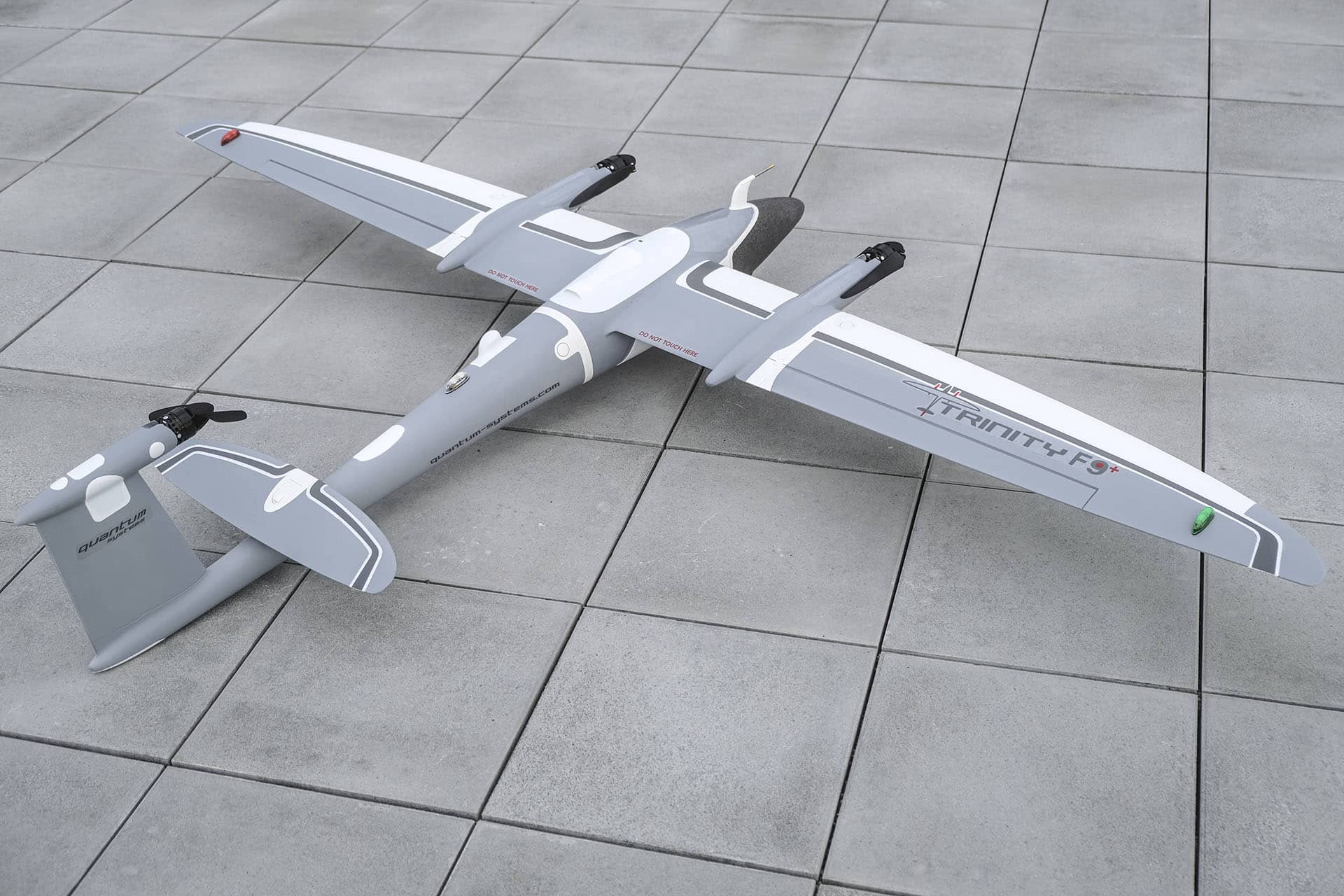

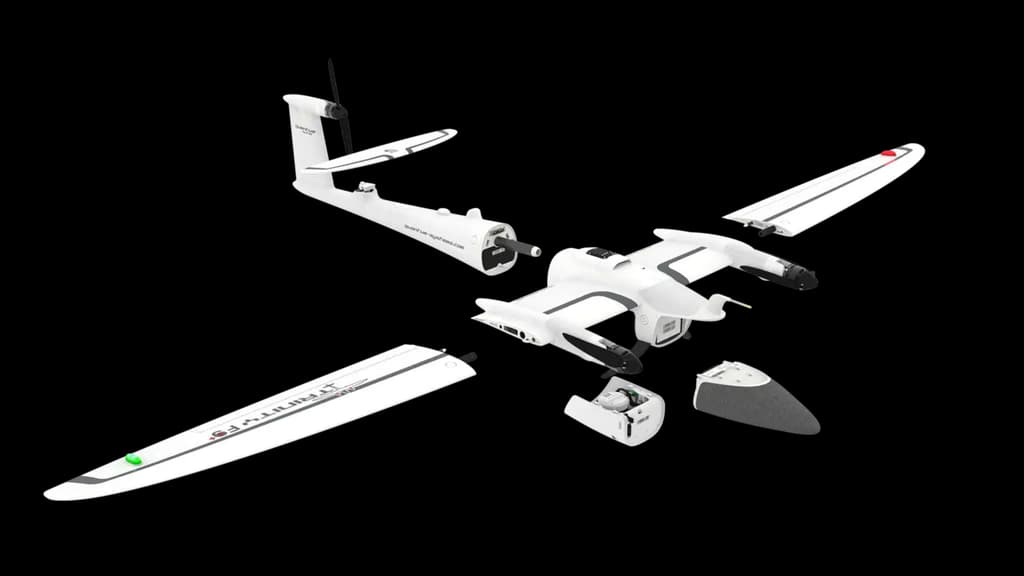

Quantum Systems Trinity F90+
The Trinity F90+ is a fixed-wing VTOL survey aircraft from the German manufacturer Quantum Systems: it lifts off vertically like a multirotor, transitions to efficient forward flight, and stays airborne up to 90 minutes at a 5 kg maximum takeoff weight with a 700 g payload allowance. That combination makes it the large-corridor and wide-area tool on this list. It is an airframe, not a complete LiDAR system - a survey-grade scanner such as the Qube payload is specified and priced separately - and Quantum Systems now markets the Trinity Pro as the current generation of the platform. Sales are through regional dealers on quotation.
$10,000 – $15,000

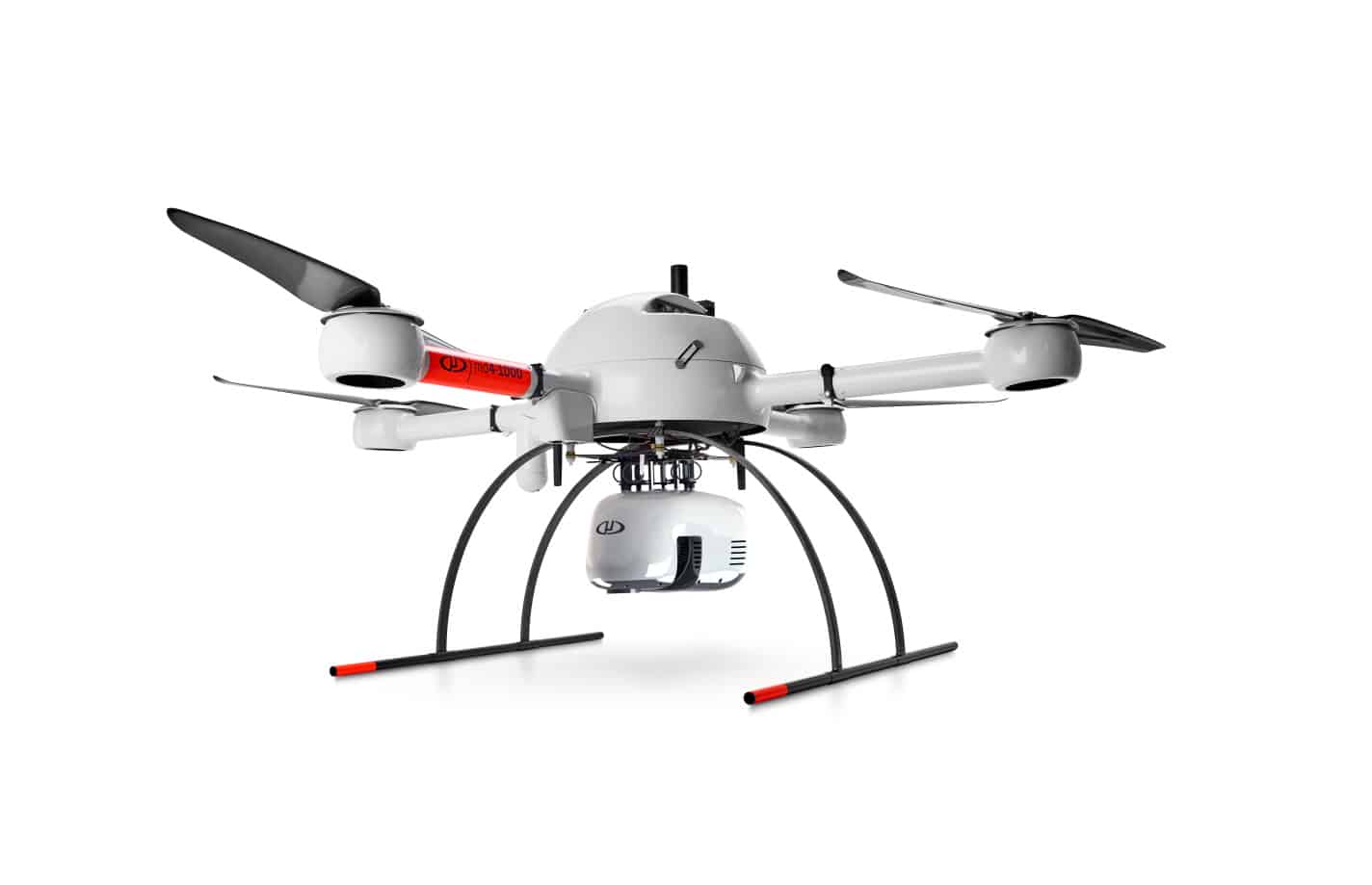

Microdrones mdLiDAR3000DL aaS
The mdLiDAR3000DL is the one genuinely turnkey option on this page: Microdrones supplies the airframe, the laser scanner, the positioning system and the processing workflow as a single integrated system, offered as-a-service so the cost sits closer to an operating expense than a capital purchase. The scanner fires 100,000 pulses per second at a 150 Hz scan rate and records up to five returns per pulse, with a rotating cone scan pattern that yields well-distributed coverage. Microdrones specifies 1-3 cm horizontal RMSE and 2-4 cm vertical RMSE, figures supported by an independent accuracy assessment published in LIDAR Magazine. Supplied through Microdrones and its dealer network on quotation.
YellowScan Voyager
The Voyager is YellowScan's long-range flagship scanner - a payload, not an aircraft. It weighs 3.5 kg without its battery, captures up to 2.4 million shots per second, and is specified at 1 cm accuracy and 0.5 cm precision with a laser range reaching 1,250 m and up to 32 returns per pulse. YellowScan rates it to 440 m above ground level with roughly an hour of battery autonomy, and it integrates with multirotors, helicopter drones, fixed-wing aircraft and light manned aircraft. You will need a suitable airframe with the lift and endurance to carry 3.5 kg. It is sold by quotation through YellowScan and its integrators.
$25,000 – $40,000
Phoenix LiDAR Systems Ranger LRX
Phoenix LiDAR Systems, based in Los Angeles, builds modular airborne laser scanning payloads under the Ranger name that mount across multiple UAV and light manned platforms. The long-range members of the family are built around RIEGL scanners - the RANGER-LR uses a VUX-1LR22 with a 1550 nm laser reaching roughly 1,000 m on 20 percent reflectance targets, up to 15 returns per pulse and about 5 mm precision at 150 m, which is what makes it effective through dense vegetation. One caveat worth checking before you quote: Phoenix currently lists the family as RANGER-LR, RANGER-XL and RANGER-LR22 Lite, so confirm the exact designation and scanner configuration with Phoenix directly. Everything is configured and priced per project through the manufacturer.
What separates these systems is measurable: point rate, accuracy, returns per pulse and how long the aircraft stays up. The YellowScan Voyager leads on raw capture at up to 2.4 million shots per second with 1 cm accuracy, 0.5 cm precision and up to 32 returns per pulse. The Microdrones mdLiDAR3000DL trades density for simplicity at 100,000 pulses per second and five returns, with a manufacturer-stated 1-3 cm horizontal and 2-4 cm vertical RMSE. The Trinity F90+ wins on coverage with 90 minutes of flight and a 700 g payload allowance at a 5 kg maximum takeoff weight. All of them are dealer-supplied, quote-priced professional instruments rather than off-the-shelf hardware.
Understanding LiDAR Surveying Drones
Drone LiDAR pairs a laser scanner with a positioning system on an aircraft. Knowing which half you are buying, and what accuracy it actually delivers, matters more than any spec sheet headline.
LiDAR fires laser pulses and times their return, building a dense 3D point cloud independent of ambient light - it works under canopy and in low light where photogrammetry fails.
Buy in two parts: the airframe (flight time, payload capacity, VTOL or multirotor) and the scanner (point rate, range, accuracy, returns per pulse). Compatibility between them is not automatic.
Survey-grade accuracy comes from the whole chain - scanner, IMU, GNSS/RTK or PPK correction and ground control - not from the laser alone. Published figures assume proper base station or PPK workflow.
Multiple returns per pulse let the beam punch through vegetation: the mdLiDAR3000DL records five, the YellowScan Voyager up to 32, which is why forestry work favours high-return sensors.
In Canada every system on this page must be registered with Transport Canada and flown under a Basic or Advanced RPAS pilot certificate; Advanced is required for controlled airspace and operations near people.
None of these are consumer products. Expect a dealer quote, a lead time, and mandatory training - and factor in post-processing software and annual support in the total cost.
Frequently Asked Questions
Can I actually buy these LiDAR surveying drones online?
Not as complete systems. DJI enterprise kits, Quantum Systems, Microdrones, YellowScan and Phoenix LiDAR all sell through authorized dealers and integrators on a quotation basis, typically bundled with training and support. Some individual components - such as a Zenmuse LiDAR payload - do surface on marketplace listings, but the aircraft, the software and the calibration usually do not. Budget for a dealer conversation rather than a checkout.
Is the DJI Matrice 300 RTK with Zenmuse L1 still the right kit to buy in 2026?
No. DJI has discontinued the Zenmuse L1 and replaced it with the Zenmuse L2, which fits the Matrice 300 RTK, Matrice 350 RTK and Matrice 400, and the Zenmuse L3, which is Matrice 400-only. The Matrice 300 RTK airframe has itself been succeeded by the M350 RTK and the M400. If you already own an M300, an L2 is the sensible upgrade path; if you are starting fresh, quote an M400 with an L3.
What is the difference between the airframe and the LiDAR payload?
The airframe is the aircraft - the Matrice 300 RTK or the Trinity F90+, for example - and it determines flight time, payload capacity and where you can legally fly. The payload is the laser scanner that actually collects the data: the Zenmuse L-series, the YellowScan Voyager and the Phoenix Ranger are all payloads, and each needs a compatible aircraft. The Microdrones mdLiDAR3000DL is the exception here, sold as an integrated airframe-plus-sensor package.
How accurate is drone LiDAR for survey work?
It depends on the sensor and the workflow. The YellowScan Voyager is specified at 1 cm accuracy and 0.5 cm precision. Microdrones states 1-3 cm horizontal RMSE and 2-4 cm vertical RMSE for the mdLiDAR3000DL, figures backed by an independent assessment. DJI quoted roughly 5 cm vertical and 10 cm horizontal at 50 m for the Zenmuse L1. Those numbers all assume correct RTK or PPK processing and ground control - accuracy comes from the full chain, not the laser alone.
Conclusion
If you are specifying a new DJI mapping kit in 2026, do not order the combination named at the top of this page as-is. DJI has retired the Zenmuse L1; the current scanners are the Zenmuse L2, which mounts on the Matrice 300 RTK, Matrice 350 RTK and Matrice 400, and the Zenmuse L3, which is Matrice 400-only. The Matrice 300 RTK airframe itself has been succeeded twice over by the M350 RTK and the M400. The L1 entry stays on this list because a large installed base is still flying it and used units still trade, but a new buyer should be quoting an L2 or L3 kit. Beyond DJI, the choice is about mission shape: the Trinity F90+ covers large corridors and area surveys on a single 90-minute fixed-wing VTOL flight but needs a scanner added; the mdLiDAR3000DL is the least fiddly option because the airframe, sensor and cloud processing come as one subscription; the YellowScan Voyager is the point-density flagship at roughly 2.4 million shots per second and 1 cm accuracy for demanding forestry and mining work; and the Phoenix Ranger family is the modular route when you want to move one scanner between several aircraft. Whichever way you go, get the quote in writing with training, software and support itemised - the sticker price is rarely the delivered price.
