Top 5 Expansion Relay Modules in Canada for 2025 - Expert Guide to DIN-Rail & Panel-Mount I/O Expanders for Ventilation Controls (What Installers and Facility Managers Need to Know)
Published on Thursday, August 21, 2025
Expansion relay modules are modular relay expansion units that increase I/O capacity for existing ventilation control systems. Available in DIN-rail and panel-mount formats with IP-rated enclosures, these modules deliver plug-and-play scalability, distributed I/O placement, and compatibility with master controllers over standard fieldbuses such as Modbus, BACnet, ProfiNet, and Ethernet/IP. In Canada, buyers prioritize ruggedness for variable climates, code compliance, simplified installation to reduce labour on retrofit jobs, and easy integration with building automation systems. The appeal comes from reduced wiring complexity, lower installation cost, faster commissioning, and the ability to scale control systems incrementally as building or tenant needs change.
Top Picks Summary
Siemens LOGO! DM16 24R
The LOGO! DM16 24R is positioned as a market-leading expansion relay module because it delivers a high channel count in a compact DIN-rail form factor with seamless integration into the LOGO! logic family, making it cost-efficient on a per-channel basis for mid-sized control tasks. Compared with the other modules listed, Siemens stands out for broad ecosystem compatibility and supply-chain maturity, offering lower total system engineering and procurement cost when you need many relay outputs tightly integrated with LOGO! controllers.
Why modular expansion relays work: research-backed benefits
Research and industry guidance consistently show that modular, distributed I/O strategies improve system reliability, reduce lifecycle costs, and simplify maintenance for HVAC and ventilation systems. Studies and technical reports from building controls organizations and engineering bodies emphasize measurable gains in installation efficiency, mean time to repair (MTTR), and energy control when I/O is placed closer to field devices. Standardized fieldbuses and well-documented device profiles also reduce integration errors and testing time during commissioning.
Distributed I/O reduces wiring length and bulk at the central panel, decreasing material and labour costs on retrofits and new builds.
Placing relays and I/O closer to actuators and sensors improves control loop responsiveness and reduces signal cross-talk and voltage drop over long cable runs.
Modular relay units with IP-rated enclosures maintain reliability in wet or cold Canadian environments, lowering failure rates compared with non-protected field devices.
Standard fieldbus compatibility (Modbus, BACnet, ProfiNet, Ethernet/IP) speeds integration and reduces commissioning time, as shown in industry case studies and vendor white papers.
Modular designs shorten MTTR because single modules can be isolated and replaced without shutting down entire systems, improving uptime for critical ventilation.
Frequently Asked Questions
Which expansion relay module fits Siemens LOGO! setups best?
Siemens LOGO! DM16 24R is the best fit because it provides 16 relay outputs compatible with Siemens LOGO! controllers and uses a 24 V DC supply with direct bus connection; it’s rated 4.4 and lists for CA$354.96.

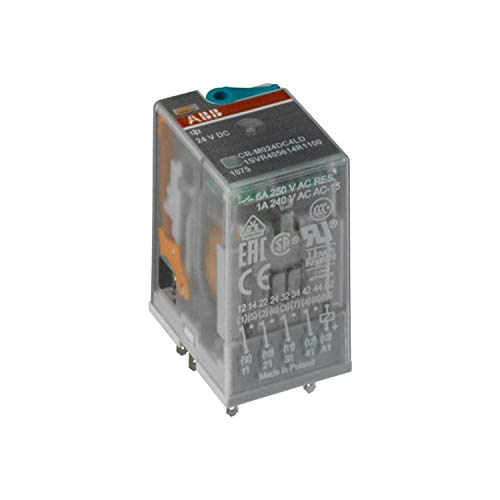

What relay output count and supply does ABB CR-M024DC4L offer?
ABB CR-M024DC4L includes four changeover relay outputs with a 24 V DC coil, built in a slim DIN-rail housing with screw terminals for wiring; it’s rated 4.6 and costs CA$58.15.
How does price compare for Siemens LOGO! DM16 24R vs Zelio SR3XT141BD?
Siemens LOGO! DM16 24R lists at CA$354.96, while Schneider Electric Zelio Logic SR3XT141BD lists at CA$294.24; you still get expansion relay outputs (rated 4.4 vs 4.2) in compact DIN-rail designs with 24 V DC operation for Zelio.

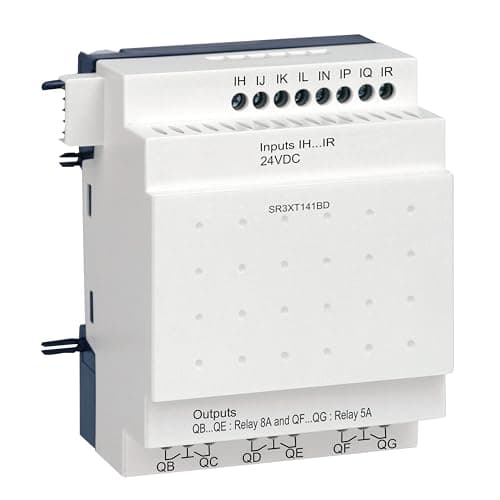

Does Zelio Logic SR3XT141BD let you add relays without CPU changes?
Yes—Schneider Electric Zelio Logic SR3XT141BD is designed for Schneider Zelio Logic to add relay outputs without changing the CPU, and it runs on 24 V DC with visual status LEDs; it’s rated 4.2 and priced at CA$294.24.
Conclusion
Across Canadian ventilation projects, modular relay expansion units transform retrofit and new-build controls by making I/O scalable, serviceable, and weather-resistant. The five modules highlighted on this page — Siemens LOGO! DM16 24R, Schneider Electric Zelio Logic SR3XT141BD, ABB CR-M024DC4L, Omron G2RV-SR700, and Phoenix Contact PLC-RSC-24DC/21 — each offer a strong mix of DIN-rail or panel-mount options, IP-rated housings, and fieldbus compatibility. For most ventilation retrofit and distributed I/O projects in Canada, the Siemens LOGO! DM16 24R stands out as the best choice thanks to its balance of modularity, documentation, and wide integrator support, though the other options (Schneider Electric Zelio Logic SR3XT141BD, ABB CR-M024DC4L, Omron G2RV-SR700, and Phoenix Contact PLC-RSC-24DC/21) may be preferable for specific form-factor, relay count, or protocol requirements. We hope you found what you were looking for — use the site search to refine by protocol, enclosure rating, or mounting style if you want to expand or narrow your results.
