Top 5 Wiring Harness Kits for Fishfinder and Chartplotter Power Supply in Canada 2025 - Pre-Assembled, Fused, and Sealed Options
Published on Monday, August 25, 2025
Pre-assembled wiring harness kits for fishfinder and chartplotter power supply combine pre-terminated connectors, fused power leads, and labeled pigtails to make boat electronics installations faster, cleaner, and more reliable. These kits appeal to anglers, boat owners, marine electricians, and DIY installers across Canada because they reduce installation time, lower the risk of wiring errors, and provide consistent, factory-style connections that improve long-term reliability in both freshwater and saltwater environments. Popular consumer preferences include sealed waterproof connectors for corrosion resistance, multiple length options for clean routing on different boat sizes, and clearly labeled leads for compatibility with common fishfinder and chartplotter models. For Canadian buyers, attention to robust corrosion protection, compatible fuse ratings, and easy route planning are especially important due to seasonal storage, variable climates, and the need for safe winterization.
Top Picks Summary

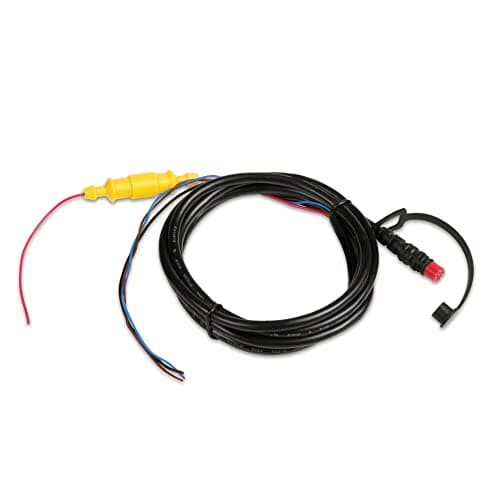

Garmin Power Cable 010-12199-04
The Garmin Power Cable 010-12199-04 is an OEM, plug-and-play harness designed to deliver reliable, instrument-grade power to compatible Garmin fishfinders and chartplotters; its tight OEM fit and factory-tested wiring make it a go-to for installers prioritizing compatibility and warranty-safe installation. While typically priced higher than generic leads, it reduces installation time and troubleshooting compared with universal kits, and it integrates cleanly with Garmin accessory wiring and in-unit fuse arrangements for a lower long-term service cost in fleet or frequent-use scenarios.
How Pre-Assembled Harness Kits Improve Safety and Reliability
Engineering and marine electrical best practices show that consistent connector terminations, correct fuse protection, and sealed interfaces reduce failure modes common to marine electronics installations. Pre-assembled harness kits apply these principles by delivering factory-quality crimps and molded seals that lower the chance of poor connections, voltage drop, and water intrusion. For beginners, this translates to fewer troubleshooting sessions, less downtime on the water, and safer electrical systems overall.
Reduced human error: factory-terminated connectors and labeled pigtails minimize mismatches and incorrect polarity, a frequent cause of device failures.
Improved electrical continuity: quality crimps and consistent cable gauge reduce voltage drop, helping sensitive fishfinder and chartplotter units perform reliably.
Fuse protection and circuit safety: pre-fused leads use correct fuse sizing to protect wiring and electronics from short circuits and overloads.
Corrosion resistance: sealed connectors and marine-grade materials slow galvanic and saltwater corrosion, increasing service life in Canadian lake and coastal environments.
Faster, repeatable installations: pre-made kits shorten install time and produce predictable results, beneficial for both DIY enthusiasts and professional installers.
Frequently Asked Questions
Which pre-assembled power cable kit should I choose for Garmin?
Choose the Garmin Power Cable 010-12199-04 if you own compatible Garmin fishfinders or chartplotters—it's an OEM, plug-and-play harness with an average rating of 4.5 and a durable marine-grade jacket for weather and UV resistance.
What exact wiring spec does the Lowrance Hook2 Power Cable use?
The Lowrance Hook2 Power Cable 000-14172-001 uses a simple 12V input wiring for typical vessel power setups, with a sealed connector and robust insulation; it’s rated 4.3 on average.
Is the Humminbird PC-11 Power Cable a better value than Garmin?
Yes for lower cost: the Humminbird PC-11 Power Cable is CAD $33.17 versus the Garmin Power Cable 010-12199-04 at CAD $51.12, while both are OEM-style harnesses for reliable 12V power delivery to compatible units.
Are these power cables weather-sealed for marine use?
Yes—the Garmin Power Cable 010-12199-04 includes weather-sealed ends and a durable marine-grade jacket, and the Lowrance Hook2 Power Cable 000-14172-001 has a sealed connector with robust insulation; both are built for long-term, corrosion-resistant use.
Conclusion

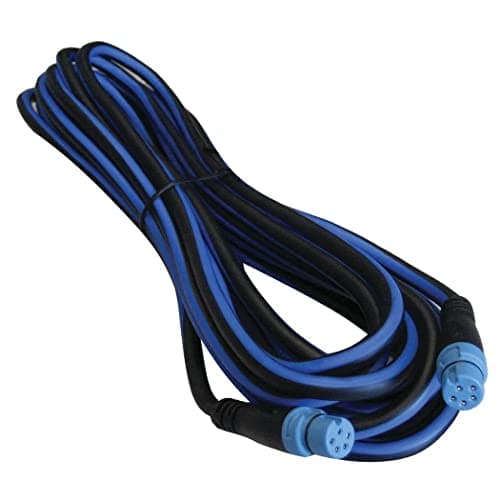

In the Canadian boating market for 2025, wiring harness kits take the hassle out of powering fishfinders and chartplotters. The top options profiled here include the Garmin Power Cable 010-12199-04, Lowrance Hook2 Power Cable 000-14172-001, Humminbird PC-11 Power Cable, Raymarine SeaTalkng Backbone Cable Kit A06037, and the Scotty 2125 12V Plug and Receptacle. Each kit offers different strengths: Garmin and Lowrance cables provide model-specific fit and reliability, Humminbird gives straightforward compatibility for popular units, Raymarine focuses on backbone and network routing for SeaTalkng systems, and the Scotty 2125 is a durable power plug solution for flexible installation. If you want a single best choice overall, the Garmin Power Cable 010-12199-04 stands out for broad compatibility, robust construction, and consistent performance across Canadian boating conditions. We hope you found what you were looking for; you can refine or expand your search using the site search to compare cable lengths, sealed connector options, and fuse ratings for your specific boat and electronics.
