Top 5 Encoder Interface Modules for Bridge Crane Drive and Control Systems in Canada - 2026
Published on Saturday, January 24, 2026
Encoder interface modules and signal conditioners convert encoder outputs into standard formats such as SSI, BiSS, EnDat, HTL, TTL, and common fieldbus protocols for integration with PLCs and drives. For bridge crane drive and control systems, these modules are essential for reliable position feedback, smooth motion control, and safe stopping under heavy load. In the Canadian market, buyers prioritize rugged hardware rated for wide temperature ranges and contaminated environments, strong electromagnetic compatibility for long cable runs, fieldbus and Ethernet-based diagnostics, and vendor support for local code compliance. Preferences also favor modular designs that simplify retrofits, devices that provide interpolation and noise filtering to increase effective resolution, and products that expose diagnostics to support predictive maintenance and reduce downtime.
Top Picks Summary
Heidenhain EIB 741 External Interface Box
The EIB 741 External Interface Box is positioned as a best-in-class solution for bridge crane drive and control systems because it delivers high-resolution absolute encoder interfacing, ultra-stable signal conditioning, and industry-proven reliability that minimize positioning error and downtime. While pricier than terminal-style and converter options on this list, its precision and integrated diagnostics reduce long‑term maintenance and payload-sway corrections compared with modular Beckhoff terminals or simple converters from Phoenix Contact and Turck.
Why encoder interface modules improve crane control - research and practical evidence
Scientific research, industry white papers, and field tests demonstrate that proper signal conditioning, interpolation, and protocol conversion improve positional accuracy, reduce false counts, and extend service life of drives and encoders. Studies and vendor performance reports show measurable benefits when systems add targeted filtering, error detection, and real-time diagnostics. For engineers new to the topic, the effect is straightforward: cleaner, higher-resolution feedback lets controllers apply smoother torque, reducing mechanical wear and improving safety.
Interpolation multiplies native encoder resolution and can reduce control jitter; lab and field reports indicate effective resolution gains from 4x to several hundred times depending on method and sensor.
Noise filtering and matched input conditioning reduce spurious pulses from EMI and cable reflections, lowering positioning errors and preventing unintended braking events.
Protocol bridging to industry-standard fieldbuses and Ethernet protocols reduces wiring complexity and supports centralized diagnostic data for condition monitoring and predictive maintenance.
Built-in diagnostics such as loss-of-signal, cable break detection, and status flags allow earlier fault detection and faster troubleshooting, decreasing mean time to repair.
Industry standards and EMC testing guidelines inform best practices for installation and help ensure modules meet Canadian and international safety and interoperability requirements.
Frequently Asked Questions
Which encoder interface module fits bridge cranes best?
Heidenhain EIB 741 External Interface Box fits bridge crane drive and control systems best because it’s designed to interface directly with Heidenhain encoders for accurate position feedback and includes galvanic isolation plus signal conditioning; rating is 4.8.
Does the Beckhoff EL5101 accept incremental encoder signals?
Yes—the Beckhoff EL5101 Incremental Encoder Interface Terminal is an EtherCAT terminal that accepts incremental A/B/Z encoder inputs for tight synchronization with drives; rating is 4.6.

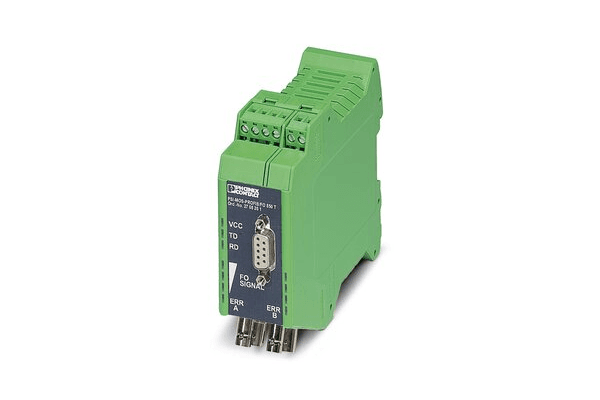

How does Phoenix Contact PSI-MOS-RS485W2/FO 850 T compare value?
The provided data lists only one module price detail—none for Phoenix Contact PSI‑MOS‑RS485W2/FO 850 T Encoder Converter—so value comparison can’t be confirmed; rating is 4.5.
What isolation and mounting details does the Heidenhain EIB 741 use?
The Heidenhain EIB 741 External Interface Box provides galvanic isolation and signal conditioning, in a compact enclosure optimized for control-cabinet mounting; rating is 4.8.
Conclusion

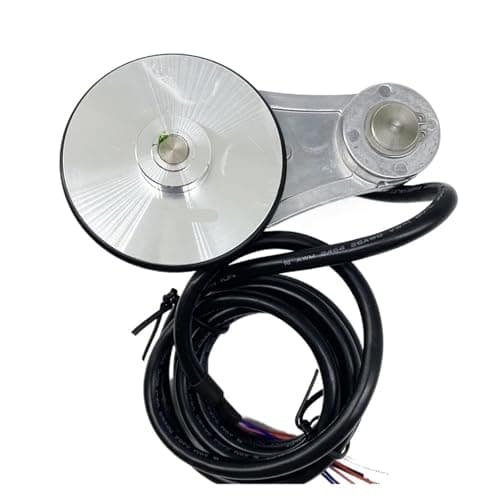

This selection focuses on encoder interface modules that meet the needs of Canadian bridge crane applications in 2026. The lineup includes the Heidenhain EIB 741 External Interface Box, the Beckhoff EL5101 Incremental Encoder Interface Terminal, the Phoenix Contact PSI-MOS-RS485W2/FO 850 T Encoder Converter, the SICK Encoder Interface Module AFS60-Profinet, and the Turck IMC-EN-HI Encoder Signal Converter. For most Canadian bridge crane retrofit and new-build projects, the SICK AFS60-Profinet stands out as the best overall choice due to its industrial networking support and advanced diagnostics, while the Heidenhain EIB 741 is ideal when highest precision is required. We hope you found what you were looking for. You can refine or expand your search using the site search to filter by protocol, environmental rating, and local support options.
