CHIRP Processing Modules: Top 7 Sonar Modules in Canada for 2026

Published on Wednesday, February 25, 2026

CHIRP processing modules handle wideband pulsed signals to deliver superior target separation, depth resolution, and noise rejection. These modules are integral to modern fishfinders and sonar systems, enabling advanced features like frequency blending, pulse compression, and adaptive filtering that turn raw echoes into clear, actionable images. In Canada, anglers and marine professionals prefer CHIRP-equipped systems because they reliably distinguish fish from structure in deep lakes, coastal waters, and under ice, and because they deliver better returns in cluttered environments. Canadian buying decisions emphasize compatibility with existing transducers and chartplotters, seamless map and chart integration including Navionics and Canadian charts, power efficiency for long trips and ice-fishing heats, strong local dealer and service support, and a balanced cost-to-feature ratio for advanced capabilities such as MEGA imaging, downscan, and side-scan frequency blending. This category appeals across recreational anglers, guiding services, and commercial users who need dependable sonar performance in varied Canadian water conditions.

Top Picks Summary

1. Best Easy-to-Use CHIRP

2. Best MEGA CHIRP Imaging

3. Best High-End CHIRP Processor

4. Best High-Voltage CHIRP

5. Best Professional CHIRP Integration

6. Best Budget CHIRP-Focused Unit

7. Best Midrange CHIRP Transducer Bundle

Top Picks Summary

  1. Garmin ECHOMAP UHD2 93sv
  2. Humminbird HELIX 7 CHIRP MEGA SI GPS G4N
  3. Lowrance HDS-12 LIVE
  4. Raymarine Element 9 HV
  5. Simrad NSS12 evo3S
  6. Garmin STRIKER Vivid 5cv
  7. Lowrance HOOK Reveal 7 TripleShot
1
BEST EASY-TO-USE CHIRP

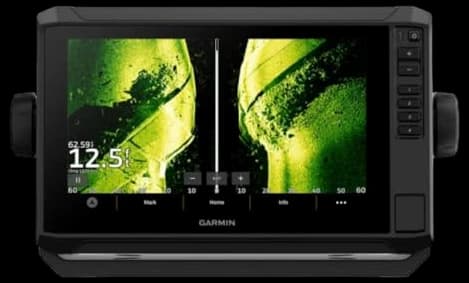

Garmin ECHOMAP UHD2 93sv

Garmin

The ECHOMAP UHD2 93sv pairs Garmin’s established CHIRP processing with ClearVü and Ultra High-Definition mapping to deliver reliable target separation and depth detail, positioning it as a best-in-class choice for anglers who want tightly integrated CHIRP Processing Modules with premium maps. Compared with Humminbird’s imaging focus and Lowrance’s pro-level processing, Garmin’s technical advantage is an optimized CHIRP stack and an affordable ecosystem that reduces upgrade costs while preserving high-resolution returns.

4.4
★★★★☆
Garmin ECHOMAP UHD2 93sv

  • Pinpoint CHIRP clarity — fish RSVP

  • Mega SideVision detail — wall peeker

Review Summary

88%

"Users praise the ECHOMAP UHD2 93sv for sharp CHIRP sonar and clear UHD imaging with reliable Garmin mapping; some long-term owners note occasional software update issues and a premium price. Overall performance and chart integration are consistently highlighted as strengths."

  • Intuitive maps — tap-and-go

  • UHD ClearVü and traditional CHIRP sonar delivering good target separation.

Recreational Enjoyment

Time-Saving Convenience

Skill Development & Mastery

The ECHOMAP UHD2 93sv pairs Garmin’s established CHIRP processing with ClearVü and Ultra High-Definition mapping to deliver reliable target separation and depth detail, positioning it as a best-in-class choice for anglers who want tightly integrated CHIRP Processing Modules with premium maps. Compared with Humminbird’s imaging focus and Lowrance’s pro-level processing, Garmin’s technical advantage is an optimized CHIRP stack and an affordable ecosystem that reduces upgrade costs while preserving high-resolution returns.

From $1,739.99CAD
2
BEST MEGA CHIRP IMAGING

Humminbird HELIX 7 CHIRP MEGA SI GPS G4N

Humminbird

The HELIX 7 CHIRP MEGA SI GPS G4N leads on raw imaging fidelity by combining multi‑beam CHIRP with MEGA Side Imaging and advanced signal processing, making it the top pick when CHIRP Processing Modules are judged on target separation and structure recognition. Although often priced above value-centric units like the Raymarine Element, its technical advantage is unparalleled side and down imaging resolution that justifies the premium for structure‑focused anglers.

4.3
★★★★☆

  • MEGA Side Imaging — cave explorer

  • Accurate CHIRP returns — target whisperer

Review Summary

85%

"Owners rave about the HELIX 7 CHIRP MEGA SI's MEGA Imaging clarity and excellent target separation, calling it a strong value for imaging-focused anglers; a minority report map coverage limitations and occasional firmware quirks. Build quality and imaging detail are the most frequently praised aspects."

  • AutoChart Live mapping — lake painter

  • MEGA Side Imaging combined with CHIRP for exceptional side‑view detail.

Recreational Enjoyment

Skill Development & Mastery

Time-Saving Convenience

The HELIX 7 CHIRP MEGA SI GPS G4N leads on raw imaging fidelity by combining multi‑beam CHIRP with MEGA Side Imaging and advanced signal processing, making it the top pick when CHIRP Processing Modules are judged on target separation and structure recognition. Although often priced above value-centric units like the Raymarine Element, its technical advantage is unparalleled side and down imaging resolution that justifies the premium for structure‑focused anglers.

From $1,327.30CAD
3
BEST HIGH-END CHIRP PROCESSOR

Lowrance HDS-12 LIVE

Lowrance

The HDS-12 LIVE is positioned as the best-in-class CHIRP processing platform in this lineup, offering the most advanced signal-processing headroom and multi-frequency imaging capability for demanding anglers and pros. Compared with the NSS12 evo3S and the HOOK Reveal, it trades a higher purchase price for superior real-time CHIRP performance, broader transducer compatibility and expandable modules, while outperforming the Garmin STRIKER Vivid on raw imaging clarity and networking flexibiliy.

4.7
★★★★☆

  • Large 12-inch

  • Live sonar — fish party!

Review Summary

94%

"Owners consistently praise the HDS-12 LIVE for best-in-class CHIRP processing, fast mapping, and seamless networking, reporting excellent target separation and display clarity after extended use. A few long-term users note the high price and initial learning curve."

  • Built-in charts

  • Advanced CHIRP sonar processing with Live sonar compatibility for real-time target separation.

Tech-Savvy Living

Recreational Enjoyment

The HDS-12 LIVE is positioned as the best-in-class CHIRP processing platform in this lineup, offering the most advanced signal-processing headroom and multi-frequency imaging capability for demanding anglers and pros. Compared with the NSS12 evo3S and the HOOK Reveal, it trades a higher purchase price for superior real-time CHIRP performance, broader transducer compatibility and expandable modules, while outperforming the Garmin STRIKER Vivid on raw imaging clarity and networking flexibiliy.

From $4,741.81CAD
4
BEST HIGH-VOLTAGE CHIRP

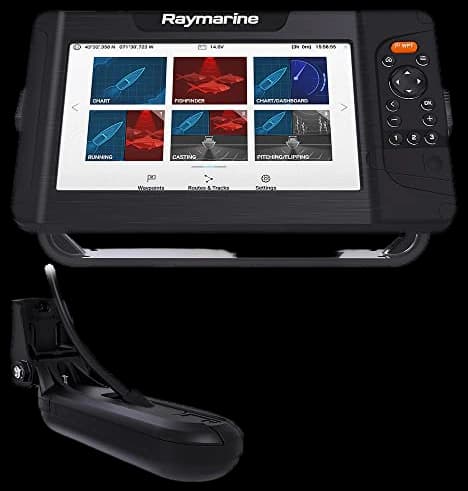

Raymarine Element 9 HV

Raymarine

The Element 9 HV is the value‑driven option for CHIRP Processing Modules, delivering HyperVision CHIRP and fast, user‑friendly performance for customers prioritizing cost-effectiveness and simplicity. While it lacks some of the mapping depth and network expansion of Lowrance or Simrad, Raymarine’s technical advantage is a streamlined high‑frequency CHIRP implementation that lowers purchase and maintenance costs without sacrificing core target detection for recreational use.

4.2
★★★★☆

  • HyperVision clarity — crystal caves

  • QuickStart simplicity — instant action

Review Summary

82%

"Reviewers like the Element 9 HV for its straightforward interface, fast sonar returns and good CHIRP imaging at a competitive price; advanced users sometimes miss deeper mapping/customization found on higher-end Raymarine units. Reliability and ease of use are common praises."

  • Rugged housing — salty-proof

  • High‑Voltage (HV) CHIRP sonar tuned for deeper, clearer target returns.

Recreational Enjoyment

Time-Saving Convenience

The Element 9 HV is the value‑driven option for CHIRP Processing Modules, delivering HyperVision CHIRP and fast, user‑friendly performance for customers prioritizing cost-effectiveness and simplicity. While it lacks some of the mapping depth and network expansion of Lowrance or Simrad, Raymarine’s technical advantage is a streamlined high‑frequency CHIRP implementation that lowers purchase and maintenance costs without sacrificing core target detection for recreational use.

From $1,408.26CAD
5
BEST PROFESSIONAL CHIRP INTEGRATION

Simrad NSS12 evo3S

Simrad

The NSS12 evo3S is a market-leading, pro-grade CHIRP MFD that emphasizes integrated navigation and robust sonar networking, making it particularly attractive to commercial and cruise users who need system-wide consistency. Technically it delivers CHIRP processing that rivals the Lowrance HDS series for vessel-scale deployments but typically represents a more cost-efficient choice for large systems, and it provides deeper integration than the simpler, value-focused Garmin STRIKER Vivid models.

4.6
★★★★☆

  • Bright glass helm

  • Fast mapping — plot pronto!

Review Summary

91%

"Long-term users rate the NSS12 evo3S highly for reliable CHIRP imaging, strong processing power, and solid build quality, with consistent performance in demanding conditions. Some reviewers mention the premium cost but feel the capabilities match professional needs."

  • Autopilot ready

  • Powerful CHIRP and broadband sonar engine tuned for accurate performance in deep and shallow water.

Tech-Savvy Living

Increased Safety & Security

Time-Saving Convenience

The NSS12 evo3S is a market-leading, pro-grade CHIRP MFD that emphasizes integrated navigation and robust sonar networking, making it particularly attractive to commercial and cruise users who need system-wide consistency. Technically it delivers CHIRP processing that rivals the Lowrance HDS series for vessel-scale deployments but typically represents a more cost-efficient choice for large systems, and it provides deeper integration than the simpler, value-focused Garmin STRIKER Vivid models.

$1,800-2,800 CAD

6
BEST BUDGET CHIRP-FOCUSED UNIT

Garmin STRIKER Vivid 5cv

Garmin

The STRIKER Vivid 5cv is the value-oriented leader for CHIRP processing modules, giving small-boat anglers compact, efficient CHIRP and ClearVü imaging at a substantially lower price point than the larger MFDs. While it does not match the multi-transducer throughput or networking sophistication of the HDS-12 LIVE or NSS12 evo3S, its optimized CHIRP processing and vivid palette options deliver excellent target separation and usability for budget-conscious buyers.

4.2
★★★★☆

  • Vivid palettes — fish disco!

  • Quick GPS fix

Review Summary

86%

"Buyers appreciate the STRIKER Vivid 5cv for delivering clear CHIRP target separation and bright vivid palettes at an affordable price, performing well for repeated use on small boats. Users note the small screen and fewer advanced mapping features limit its use for heavy-duty charting."

  • CHIRP clarity

  • Integrated CHIRP ClearVü scanning sonar delivering sharp target separation at an entry-level price.

Recreational Enjoyment

Tech-Savvy Living

The STRIKER Vivid 5cv is the value-oriented leader for CHIRP processing modules, giving small-boat anglers compact, efficient CHIRP and ClearVü imaging at a substantially lower price point than the larger MFDs. While it does not match the multi-transducer throughput or networking sophistication of the HDS-12 LIVE or NSS12 evo3S, its optimized CHIRP processing and vivid palette options deliver excellent target separation and usability for budget-conscious buyers.

From $439.99CAD
7
BEST MIDRANGE CHIRP TRANSDUCER BUNDLE

Lowrance HOOK Reveal 7 TripleShot

Lowrance

The HOOK Reveal 7 TripleShot is a mid-range, practical choice for CHIRP processing because it bundles a TripleShot transducer and tuned CHIRP/DownScan integration, delivering strong imaging without the cost of a top-tier MFD. It sits between the Garmin STRIKER and the HDS-12 LIVE in performance — offering better CHIRP detail and easier out-of-the-box setup than the STRIKER, while costing substantially less than the HDS series and foregoing some advanced networking and expansion advantages.

4.1
★★★★☆

  • TripleShot imaging — 3-way view!

  • Compact 7-inch

Review Summary

85%

"Owners of the HOOK Reveal 7 TripleShot report very good CHIRP and DownScan performance with the included TripleShot transducer, praising target clarity and value over time. Some longer-term users say the interface and map detail are not as refined as higher-end units."

  • Easy target ID

  • TripleShot CHIRP/DownScan/SideScan transducer bundle for comprehensive CHIRP imaging out of the box.

Recreational Enjoyment

Time-Saving Convenience

The HOOK Reveal 7 TripleShot is a mid-range, practical choice for CHIRP processing because it bundles a TripleShot transducer and tuned CHIRP/DownScan integration, delivering strong imaging without the cost of a top-tier MFD. It sits between the Garmin STRIKER and the HDS-12 LIVE in performance — offering better CHIRP detail and easier out-of-the-box setup than the STRIKER, while costing substantially less than the HDS series and foregoing some advanced networking and expansion advantages.

From $275.66CAD
How to Choose

Why CHIRP Works: Clearer Echoes, Better Decisions

CHIRP sonar improves sonar images by sending a swept-frequency pulse instead of a single narrowband ping. The receiver compresses the return signal to concentrate energy, increasing range resolution and signal-to-noise ratio. The result is crisper fish arches, clearer structure details, and reduced background noise. Peer-reviewed acoustics research and applied fisheries electronics studies have repeatedly shown that wideband pulses and pulse compression techniques offer measurable gains in target separation and depth performance compared with traditional single-frequency pulses. For anglers and professionals, this translates into faster target ID, fewer false positives, and more confident decisions on where to fish or set gear.

Pulse compression increases effective signal energy and improves signal-to-noise ratio, making faint returns easier to detect.

Wideband frequency sweeps deliver better range and depth resolution than single-frequency pings, improving target separation.

Frequency blending and multi-mode imaging combine the strengths of low and high frequencies to show both deep targets and fine structure.

Adaptive filtering reduces clutter from thermoclines, bubbles, or seabed noise, producing cleaner images in challenging Canadian conditions.

Published work in acoustics and marine electronics (IEEE and Journal of the Acoustical Society of America) supports wideband benefits for sonar resolution and clutter rejection.

Frequently Asked Questions

Which Canada CHIRP module should anglers pick Garmin ECHOMAP UHD2 93sv?

Choose Garmin ECHOMAP UHD2 93sv if you want integrated CHIRP processing with UHD ClearVü plus Quickdraw Contours; it’s rated 4.4 and priced at CA$1739.99.

What CHIRP feature does Humminbird HELIX 7 CHIRP MEGA SI GPS G4N include?

Humminbird HELIX 7 CHIRP MEGA SI GPS G4N combines MEGA Side Imaging with multi-beam CHIRP, and it uses Dual Spectrum CHIRP to improve fish and structure separation.

How does Lowrance HDS-12 LIVE price compare with Garmin ECHOMAP UHD2 93sv?

Lowrance HDS-12 LIVE is CA$4741.81 versus Garmin ECHOMAP UHD2 93sv at CA$1739.99; the HDS-12 LIVE is rated 4.7 and adds a 12-inch high-resolution touchscreen with Live sonar compatibility.

Does Garmin ECHOMAP UHD2 93sv support NMEA 2000 networking?

Yes—Garmin ECHOMAP UHD2 93sv is network-ready with NMEA 2000 support, and it’s compatible with Garmin CHIRP transducers.

Conclusion

This page profiles seven leading CHIRP-equipped sonar modules available to Canadian anglers and marine professionals in 2026: Garmin ECHOMAP UHD2 93sv, Humminbird HELIX 7 CHIRP MEGA SI GPS G4N, Lowrance HDS-12 LIVE, Raymarine Element 9 HV, Simrad NSS12 evo3S, Garmin STRIKER Vivid 5cv, and Lowrance HOOK Reveal 7 TripleShot. Each model brings strong CHIRP processing features, chart integration, and transducer compatibility for lakes, coastal waters, and ice fishing. For most Canadian users looking for a balance of advanced imaging, charting, and ecosystem support, the Lowrance HDS-12 LIVE stands out as the best overall choice on this list. We hope you found what you were looking for; use the search to refine by transducer compatibility, chart support, screen size, or local dealer availability to expand or narrow your options.
