Top 6 Sonar Transducers and Modules for Fishing in Canada 2025 — Best Transom, In-Hull & Through-Hull Picks
Published on Monday, August 25, 2025
Transducers and processing modules that enable sonar performance are the backbone of any modern fish finding system. This category focuses on transom, in-hull and through-hull mounting styles and highlights components chosen for their frequency range, cone angle and compatibility with current sonar units to deliver optimal depth reach and target clarity. Canadian anglers prefer durable, cold-tolerant hardware that performs well in freshwater lakes, reservoirs and coastal saltwater conditions. Key buying drivers include accurate depth and target separation (especially for structure and schooling fish), compatibility with leading chartplotter brands, ease of installation for seasonal use and ice fishing, and materials and design that resist corrosion and ice damage. For 2025 the selection emphasizes CHIRP-capable transducers, multi-frequency and wide-band modules that balance resolution and depth, giving recreational and guided anglers reliable detection across diverse Canadian waters.
Top Picks Summary
Raymarine RV-100 RealVision 3D is a transom-mount 3D transducer that produces easy-to-interpret three-dimensional seabed and structure models, providing great value for users focused on mapping and situational awareness. While it doesn't offer the continuous live-scanning fidelity of LiveScope or ActiveTarget, RV-100 is often more affordable and offers solid cross-platform usability for anglers who prefer 3D visualization over raw live detail.
The HST-DFSBL is positioned as a versatile, imaging-focused in-hull transducer that emphasizes high-resolution structure and bottom returns for anglers and mapping applications. Relative to the Garmin and Humminbird offerings, it tends to deliver stronger imaging detail for structure scanning at a mid-range price, offering a good technical compromise between affordability and mapping capability.
The STRIKER Vivid 5cv is the value-oriented leader for CHIRP processing modules, giving small-boat anglers compact, efficient CHIRP and ClearVü imaging at a substantially lower price point than the larger MFDs. While it does not match the multi-transducer throughput or networking sophistication of the HDS-12 LIVE or NSS12 evo3S, its optimized CHIRP processing and vivid palette options deliver excellent target separation and usability for budget-conscious buyers.
Humminbird MEGA 360 Imaging is a cost-effective omnidirectional scanning array built for anglers who need full 360° situational awareness around small to medium boats, delivering MEGA-level detail at short ranges for structure and fish-holding areas relevant to multibeam and split-beam transducer array use. Compared with Garmin and Raymarine it provides broader near-field coverage for a lower price, but it lacks the long-range multibeam depth resolution and split-beam target-strength accuracy that commercial-grade systems from Furuno and Simrad provide.

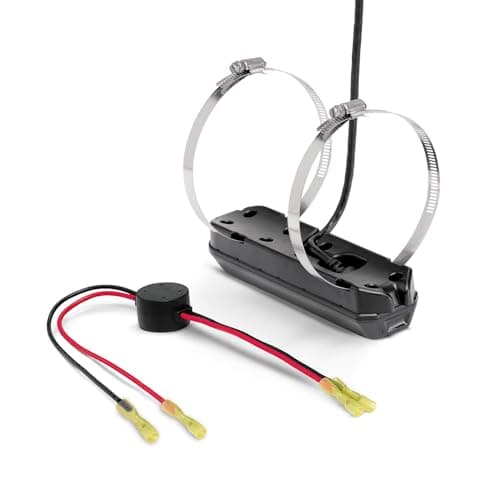

The GT56UHD-TM earns its best-in-class mention for delivering ultra-high-definition high-frequency imaging that balances fine-detail resolution with strong target separation, making it a cost-efficient choice for anglers and technical users requiring crisp forward/down views. Compared with live-scanning systems like the Panoptix LVS34 and ActiveTarget, it provides many of the same high-frequency benefits at a lower overall system cost and simpler integration, while out-resolving broader-coverage MEGA 360 and MEGA SI+ units in straight-ahead imaging scenarios.
The 50B-6B 1kW 50 kHz bronze transducer is a classic deep-water workhorse offering robust single-frequency long-range performance and exceptional physical durability in harsh marine environments. Financially and technically it can be more economical than CHIRP systems for operators who prioritize raw range and simple, proven hardware over the higher-resolution benefits of CHIRP processing. In direct comparison to Airmar's CHIRP lineup, the 50B-6B delivers straightforward long-range returns with lower system complexity but less target discrimination and flexibility.
How Sonar, Transducers and Modules Improve Fishing: Simple Science
Sonar systems work by sending sound pulses into the water and receiving echoes returned by the bottom, structure and fish. Transducers convert electrical energy into acoustic pulses and back again; processing modules handle signal conditioning, filtering and advanced pulse types such as CHIRP. Scientific research and operational guides from oceanographic and fisheries agencies show how frequency, beam angle, mounting and environmental conditions influence sonar performance. Understanding these principles helps anglers choose the right transducer and module combination to maximize range, resolution and target clarity for the fishing situations found across Canada.
Frequency vs range and resolution: Peer-reviewed acoustic research and industry white papers demonstrate that higher frequencies (200 kHz and above) provide finer target resolution but attenuate faster, reducing effective range. Lower frequencies (around 50 kHz) travel farther and detect deep targets but with less detail.
Beam width and cone angle: Studies on sonar beam geometry show that narrow cones concentrate energy for better target separation directly below the boat, while wide cones cover a larger area but reduce target detail; matching cone angle to fishing style (structure vs wide-area search) improves catch rates.
CHIRP and pulse processing: Research and manufacturer tests indicate CHIRP and broadband pulse processing improve target separation and signal-to-noise ratio by sweeping frequencies, giving clearer returns of fish near structure and bottom.
Mounting affects coupling and performance: Acoustic coupling research highlights that through-hull and in-hull installations can reduce signal loss when properly fitted and insulated, while transom mounts are simpler but can be affected by cavitation at speed and require careful trim adjustment.
Environmental factors: Studies from agencies such as NOAA and national fisheries organizations note that water temperature, salinity and thermoclines change sound speed and absorption, altering detection range and echo strength; Canadian inland lakes and coastal waters present different acoustic environments.
Materials and durability: Corrosion resistance, proper potting and anti-icing design reduce signal degradation over time; field studies and industry testing show long-term performance differences between composite, stainless and bronze housings.
Installation and calibration matter: Experimental and field comparisons confirm that correct installation, transducer alignment and matching to the sonar head unit improve target clarity more than small incremental hardware upgrades.
Frequently Asked Questions
Which transducer should I buy for 3D mapping?
Choose the Raymarine RV-100 RealVision 3D if you want photo-like three-dimensional views of structure and fish, with transom mounting and optimized integration with Raymarine Axiom series displays; it’s rated 4.2 and costs $604.15 CAD
Does the Humminbird XNT 9 20 T support dual frequencies?
Yes—the Humminbird XNT 9 20 T has dual-frequency operation for versatile shallow and mid-depth use, plus a low-profile in-hull housing; it’s rated 4.0 and priced at CA$122.83.
Is the Furuno 520-5PSD 600W worth its price?
At CA$358.30, the Furuno 520-5PSD 600W delivers a 600W through-hull design built for dependable depth readings and solid performance in demanding marine environments; it’s rated 4.5 and supports consistent echo returns with Furuno sonar and navigation systems.
Will the Humminbird XNT 9 20 T work with HELIX?
Yes—Humminbird XNT 9 20 T is directly compatible with Humminbird HELIX and SOLIX units for easy installation and upgrades; it’s an in-hull option rated 4.0 at CA$122.83.
Conclusion
Whether you fish for trophy walleye on the prairies, chase salmon and halibut on the coast, or set lines through the ice on northern lakes, the right transducer and processing module combination can make a noticeable difference. We hope this guide helped you find the type of transducer and module that fits your Canadian fishing needs for 2025. If you need a narrower recommendation by mount style, frequency or brand compatibility, refine or expand your search using the site search or filter options.
